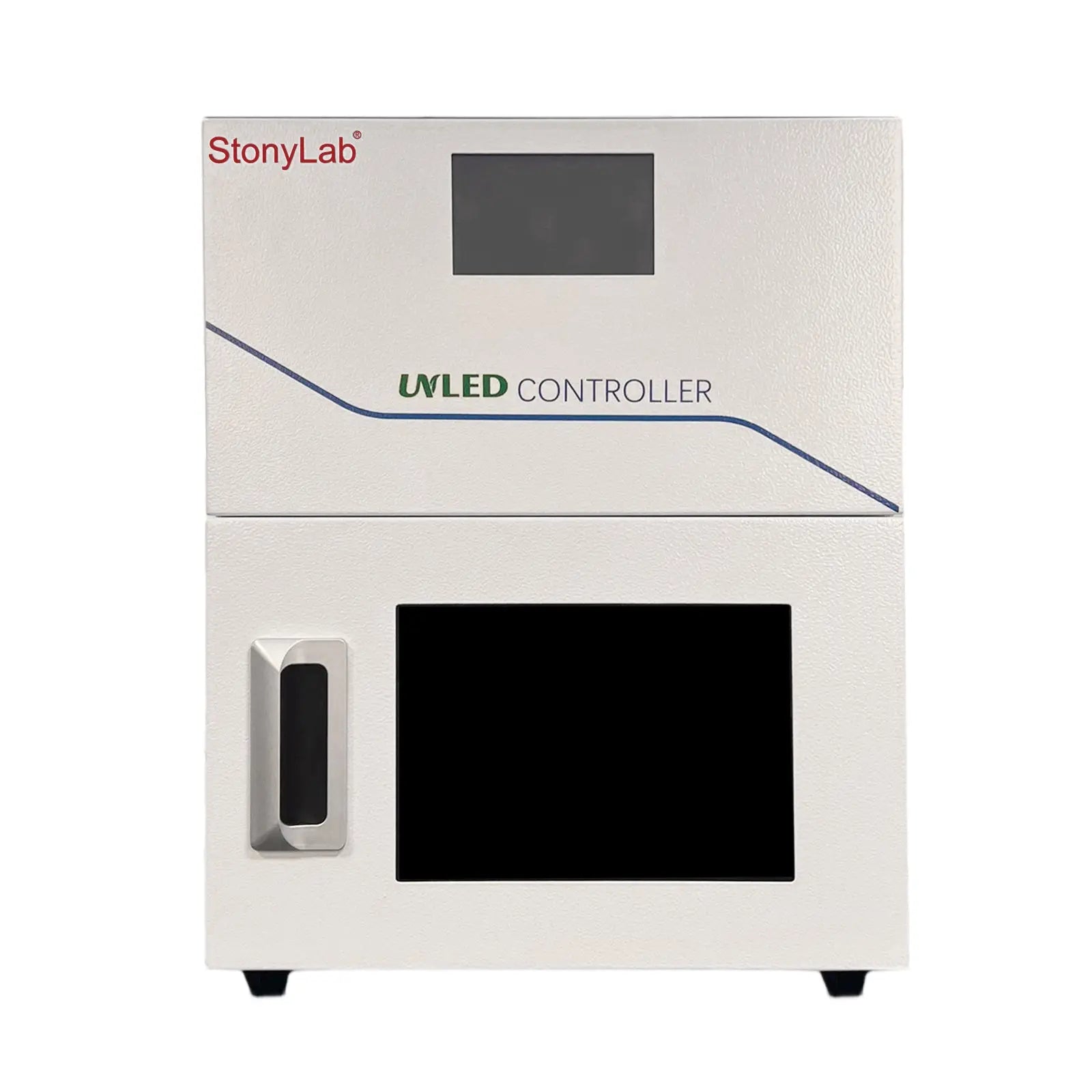

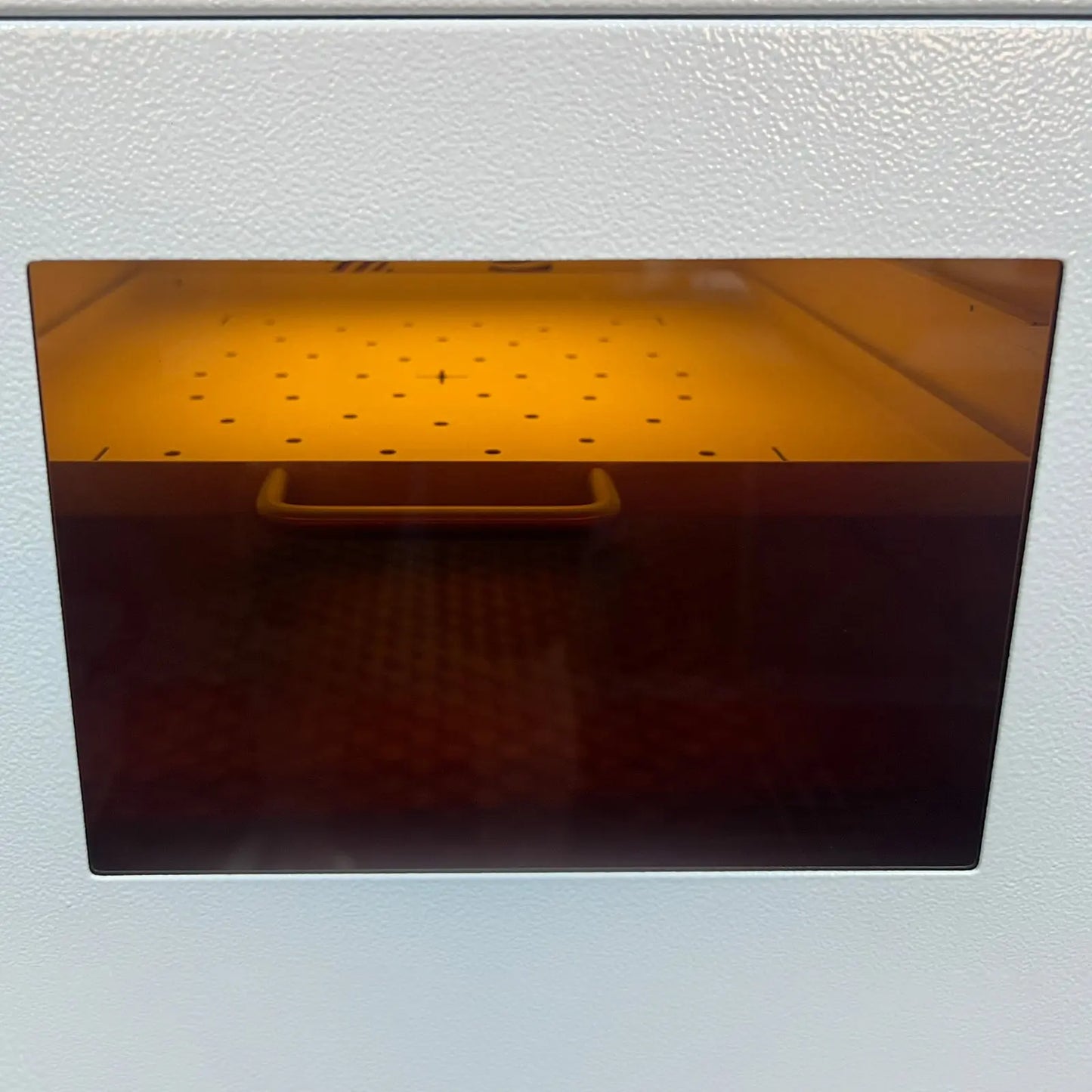

UV LED Curing Chamber with 5 inch Touch Screen, 800 W, 365/395/405 nm, 200 x 200 mm Curing Area

About this item

• High-Power UV Curing: designed for curing UV adhesives, UV resin, UV ink, photosensitive coatings, and electronic encapsulation materials; equipped with high-power UV LED source with maximum output up to 800 W (220 V version) or 600 W (110 V version) for laboratory, pilot-scale, and industrial applications
• Multiple Wavelength Options: available in 365 nm, 395 nm, and 405 nm models to match different photosensitive materials; suitable for 3D printing post-processing, electronic packaging, optical bonding, coating curing, and precision manufacturing; additional wavelength customization available upon request

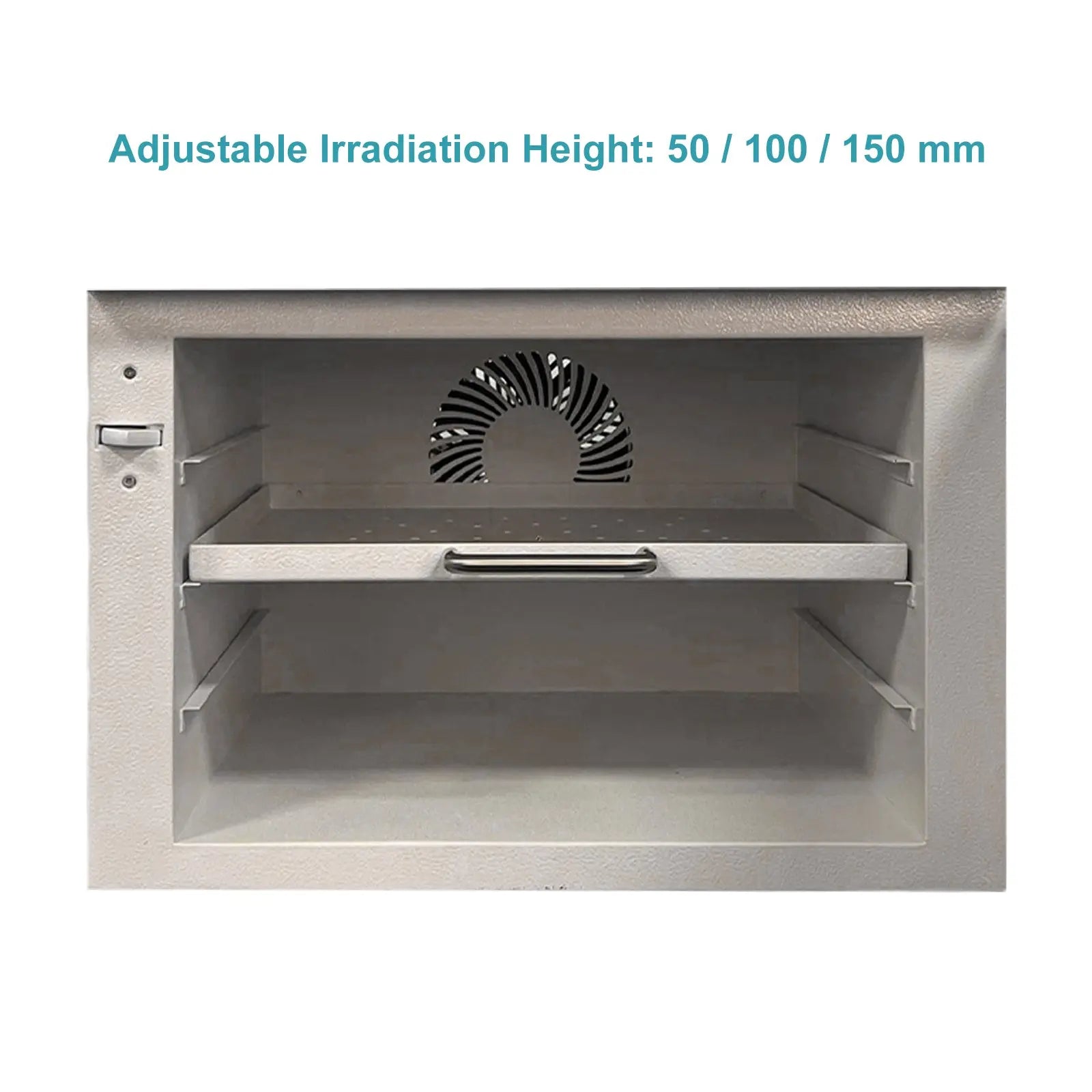

• Large Curing Area: features a 200 x 200 mm effective curing area for processing larger samples or multiple items simultaneously, improving batch curing efficiency and reducing repeated positioning

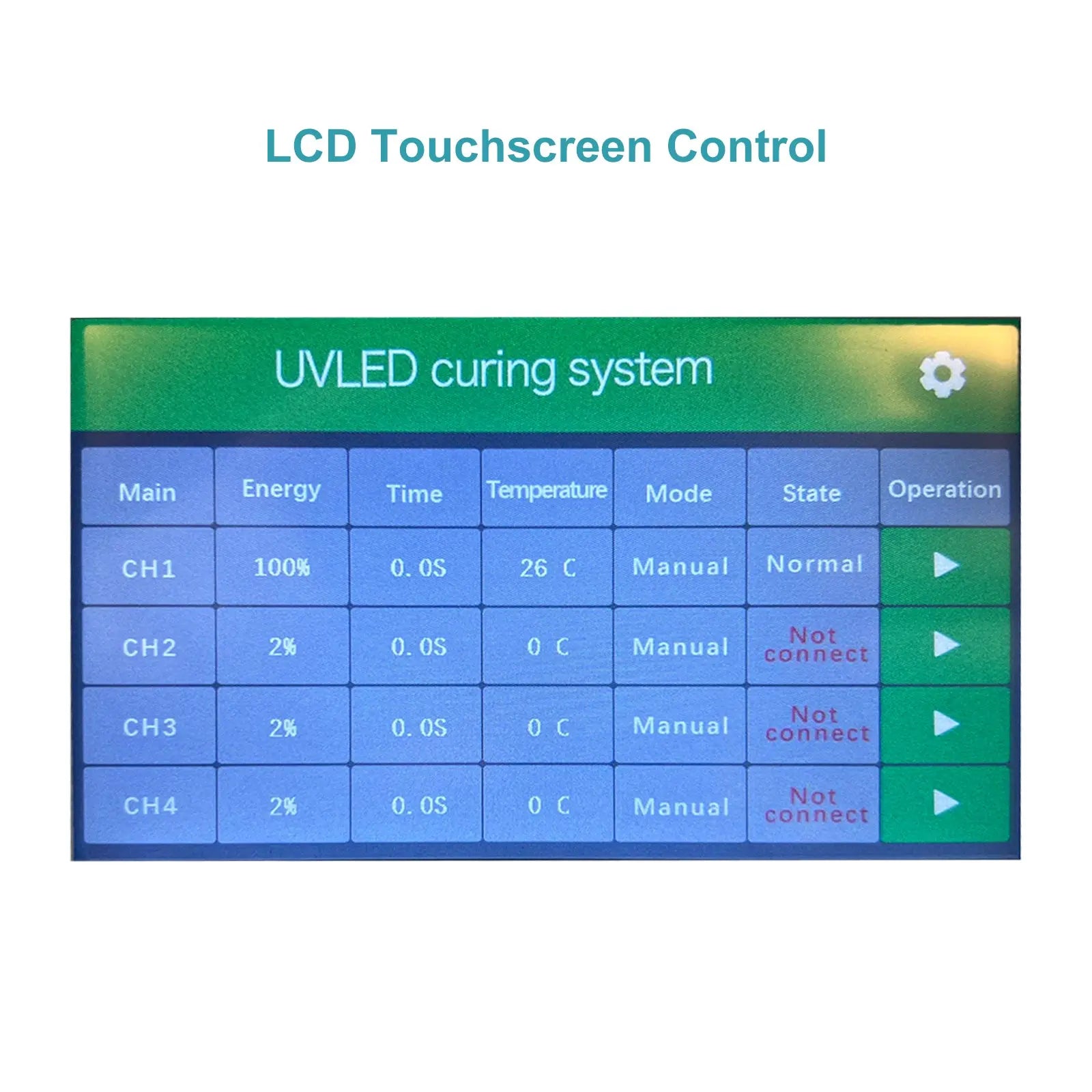

• Touch Screen & Programmable Control: equipped with a 5 inch touch screen interface, supports 5%-100% power adjustment and 8-step programmable settings for process development, parameter validation, and standardized production

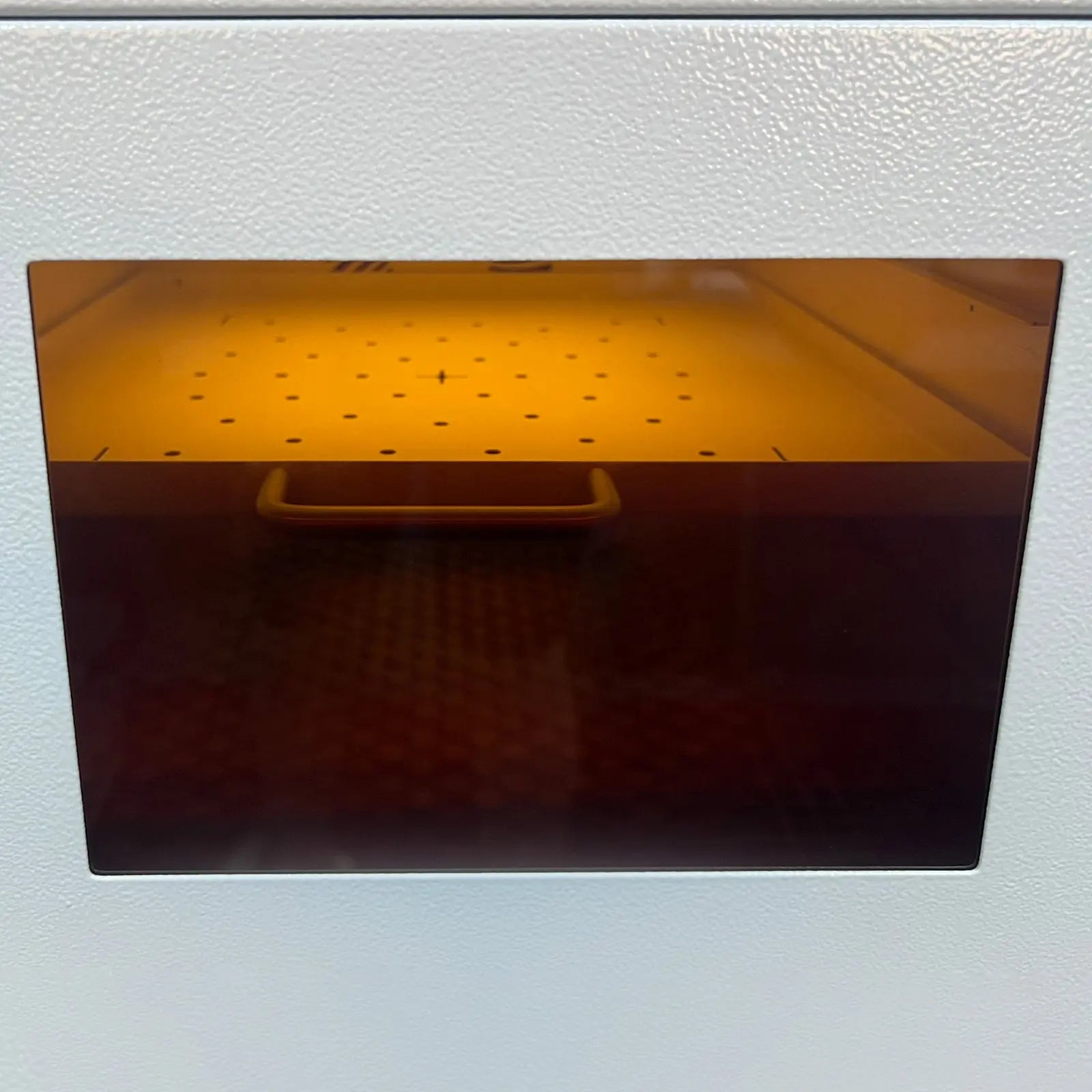

• Long-Term Stable Operation: enclosed chamber design helps reduce UV leakage risk; built-in forced air cooling and over-temperature protection support stable long-term operation; LED lifetime up to 20,000 hours with reserved PLC interface (GND/ERR) for automation integration
• Custom Wavelength Support: additional wavelength customization is available; please contact customer service for special requirements
