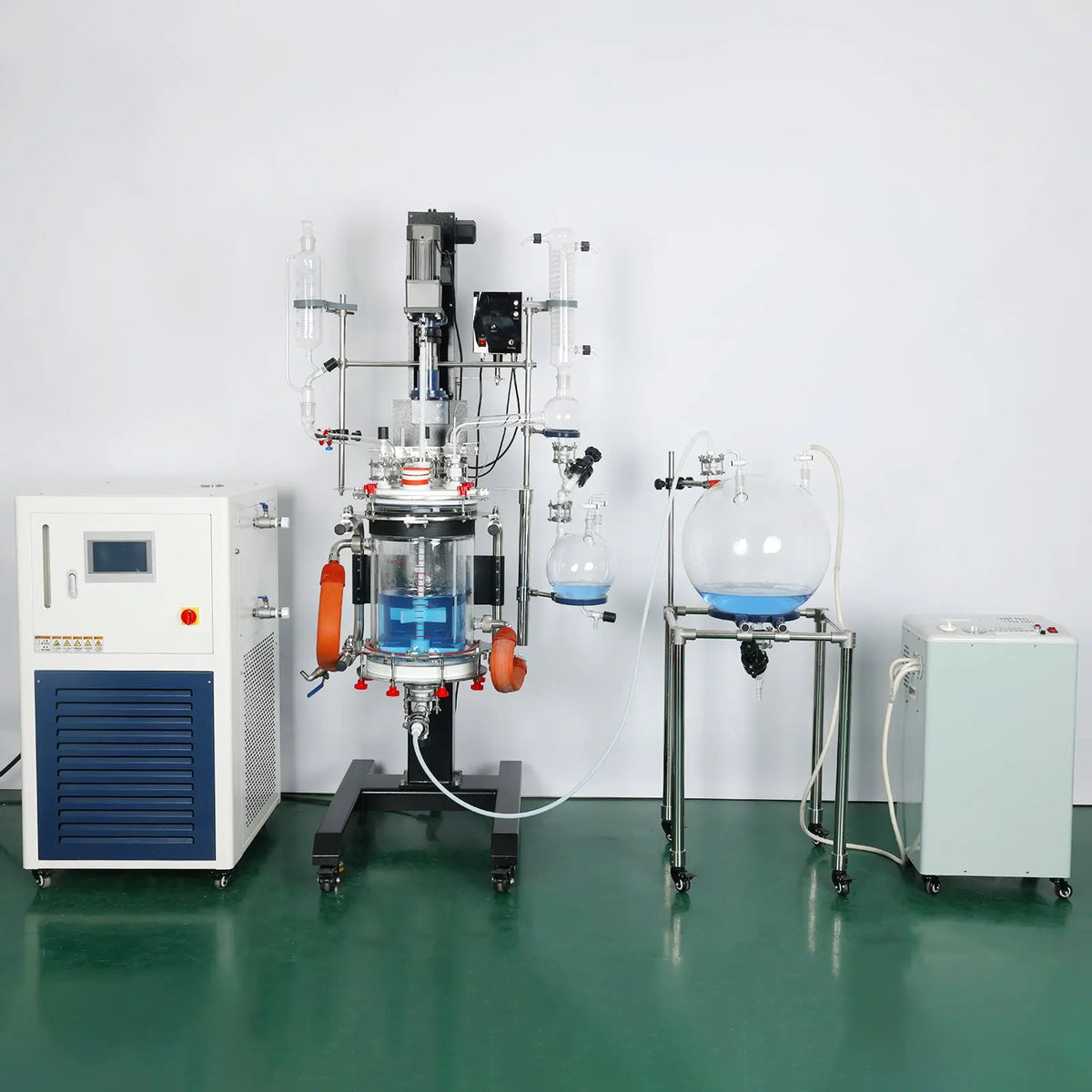

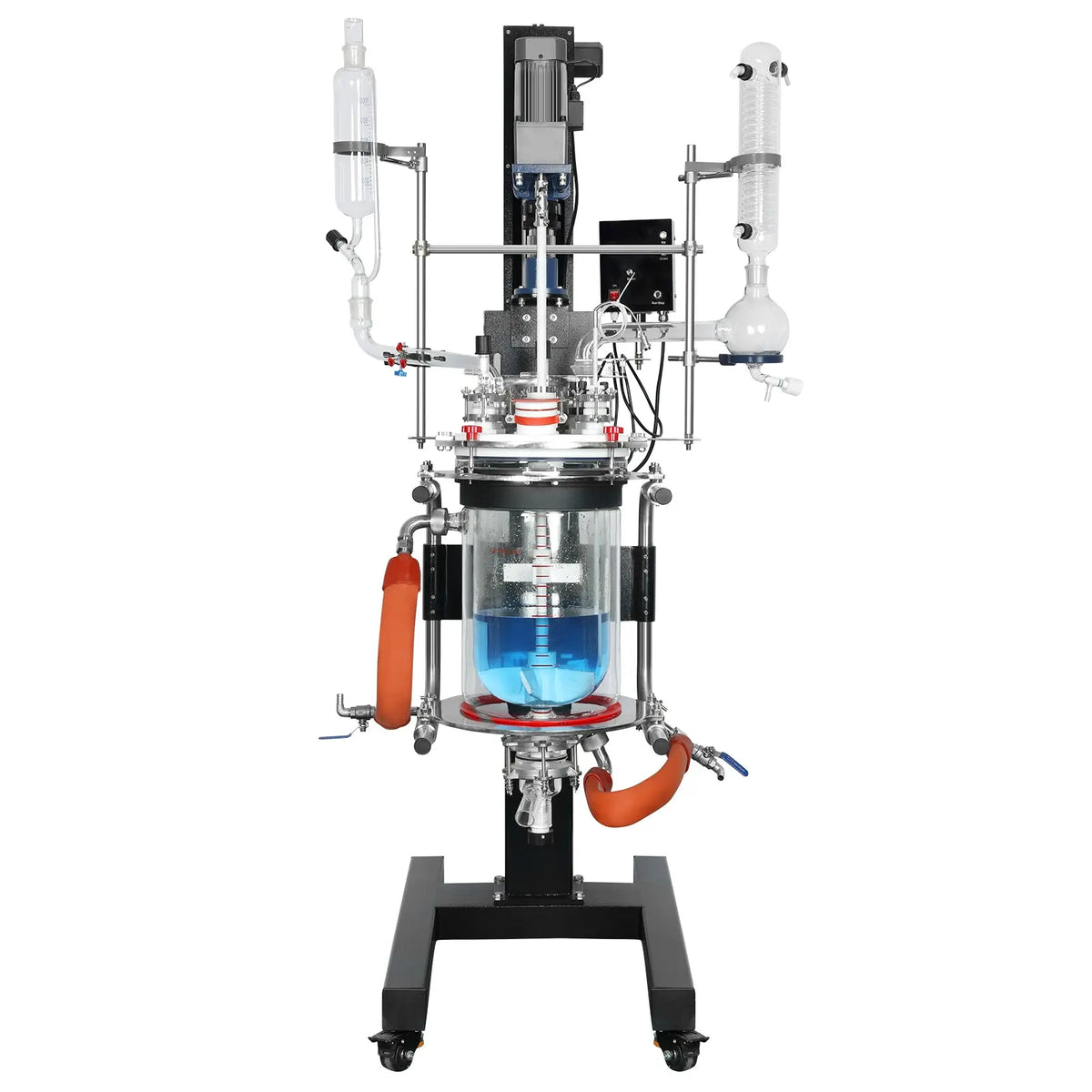

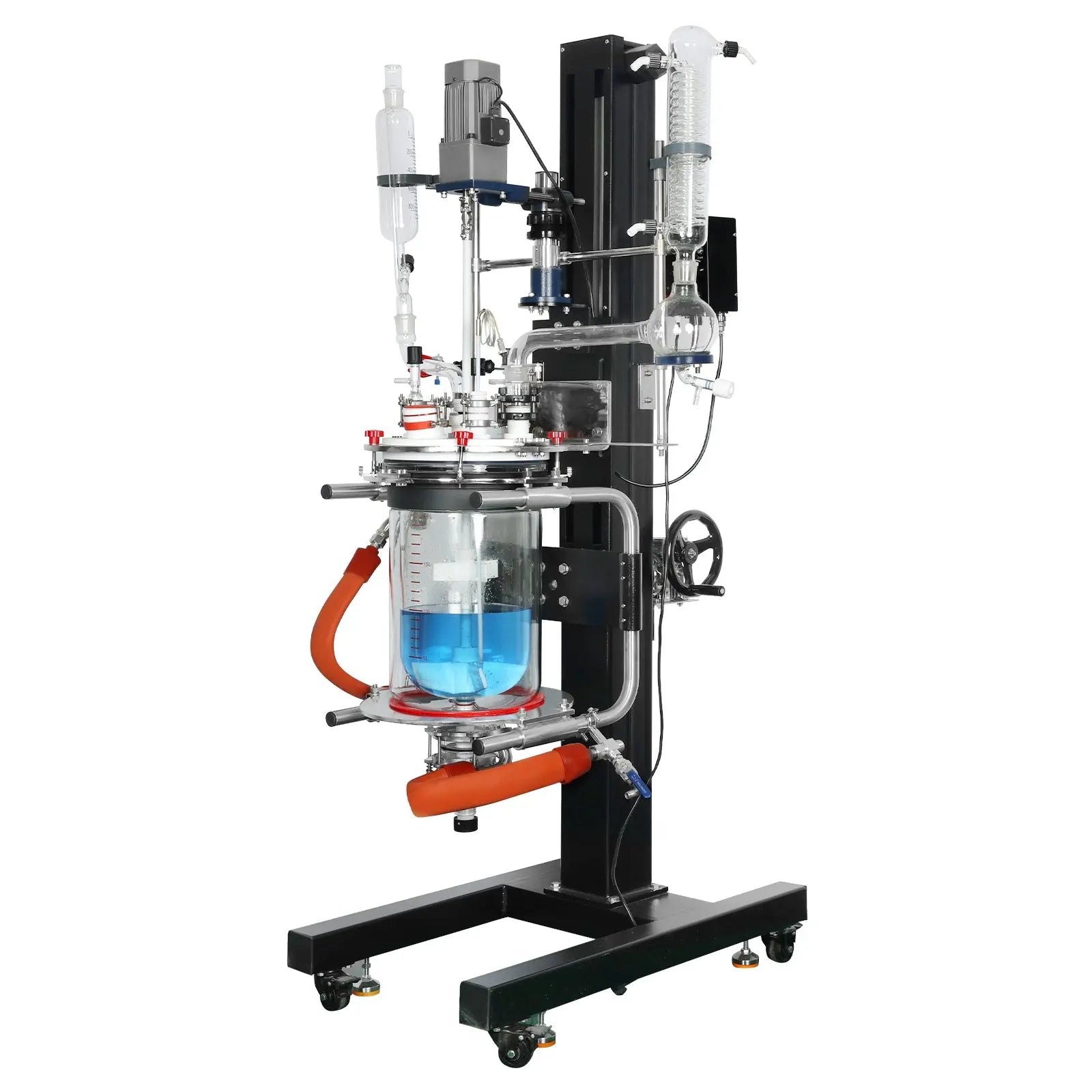

20L Jacketed Glass Reactor System with Lifting and Rotary Mixing Function
20L Jacketed Glass Reactor System with Lifting and Rotary Mixing Function
Tax-FREE for all U.S. orders except New York.
NY Tax-Exempt organization? Contact us.
About this item

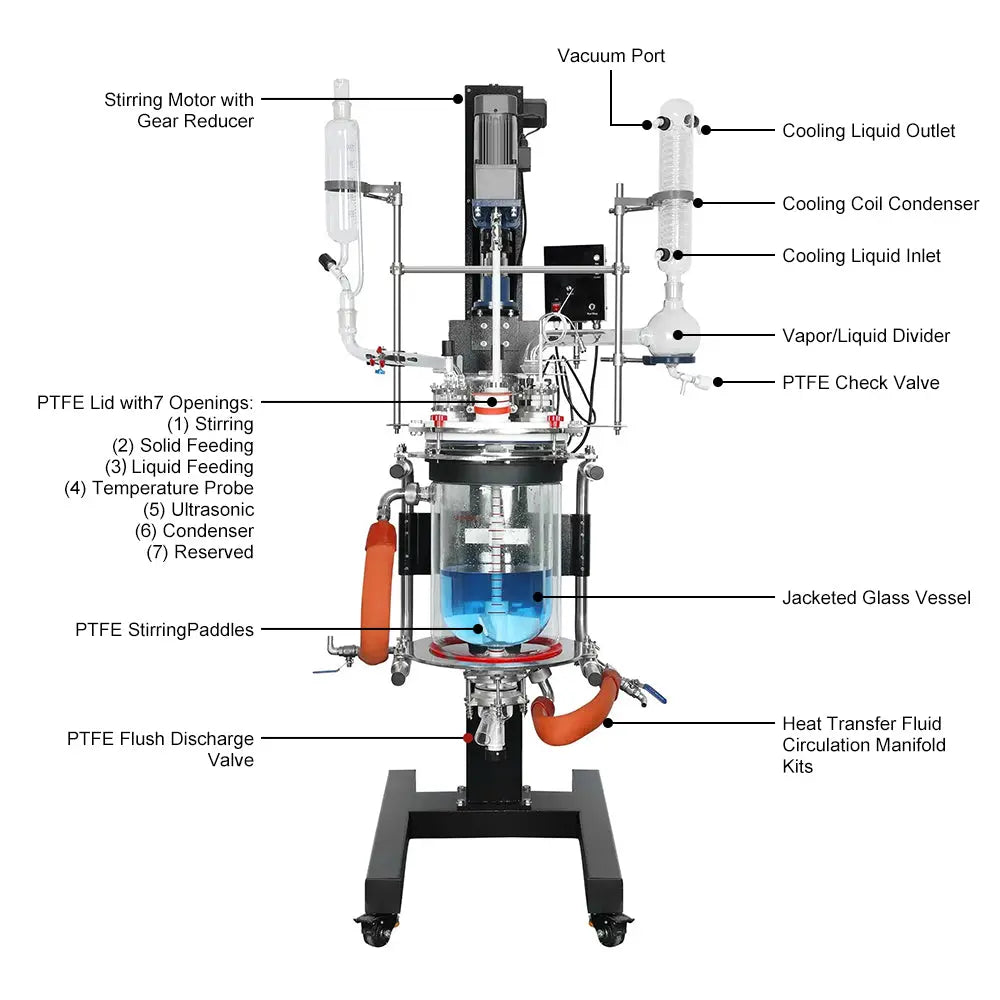

20L Jacketed Glass Reactor System: The 20L Jacketed Glass Reactor System is designed for laboratory research, pilot-scale development, chemical synthesis, extraction, crystallization, and distillation processes. Featuring a durable borosilicate glass reaction vessel, integrated lifting mechanism, rotary mixing function, and jacketed temperature control capability, this reactor system provides reliable performance for advanced research and process optimization applications.
The transparent reactor vessel allows operators to visually monitor reactions while maintaining precise control over temperature and mixing conditions. With its larger 20L working volume, this system is ideal for scale-up studies, formulation development, and pilot-scale process validation before commercial production.
Key Features

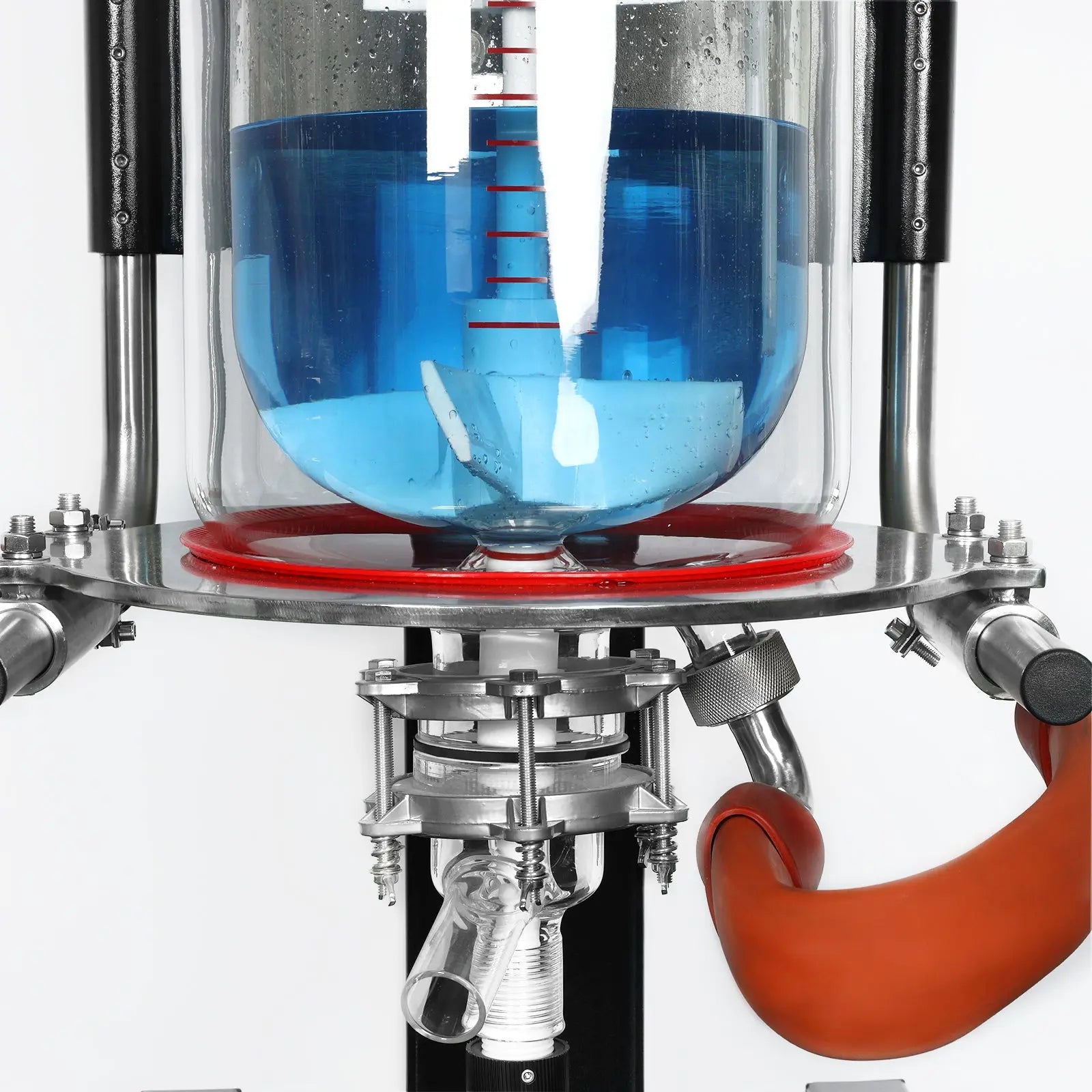

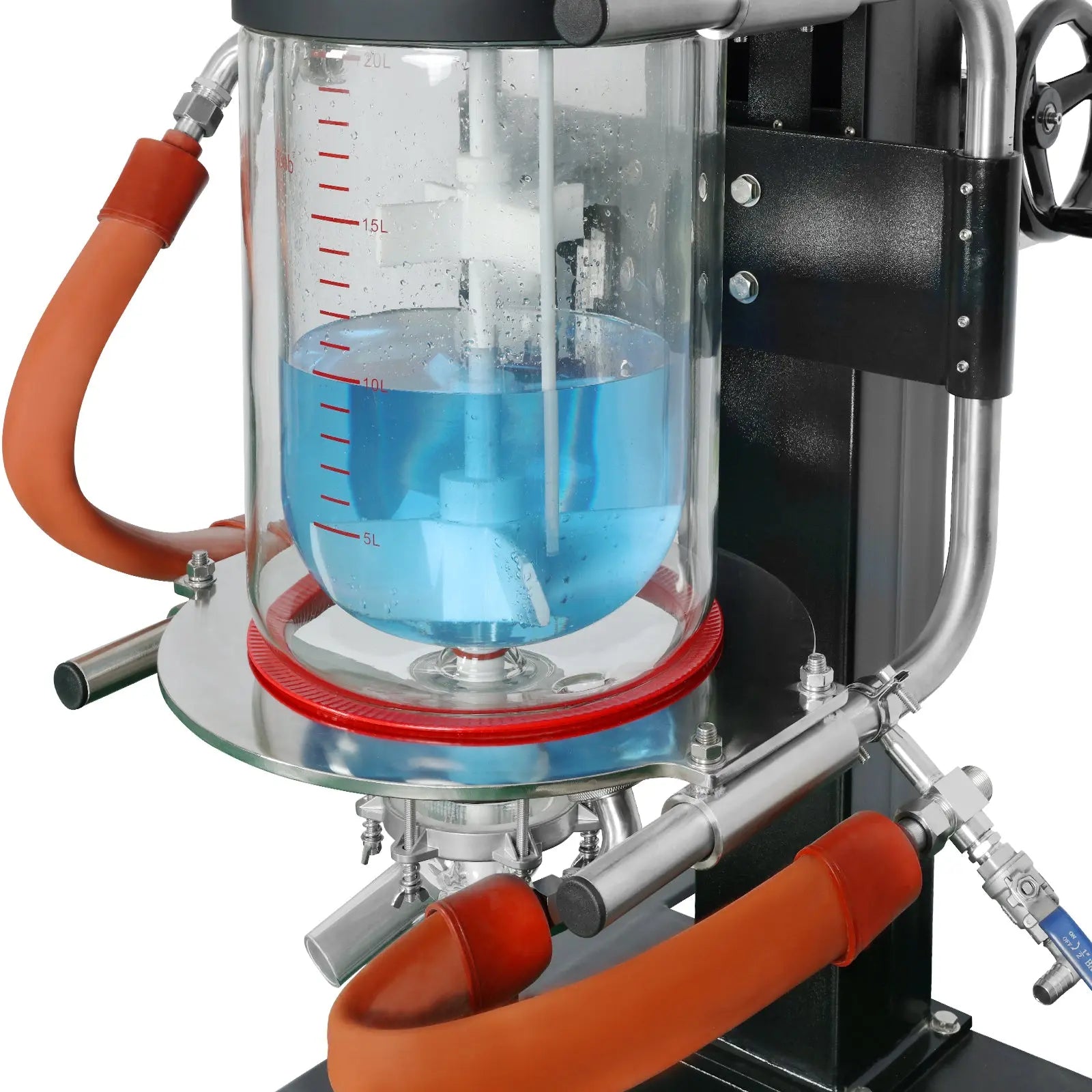

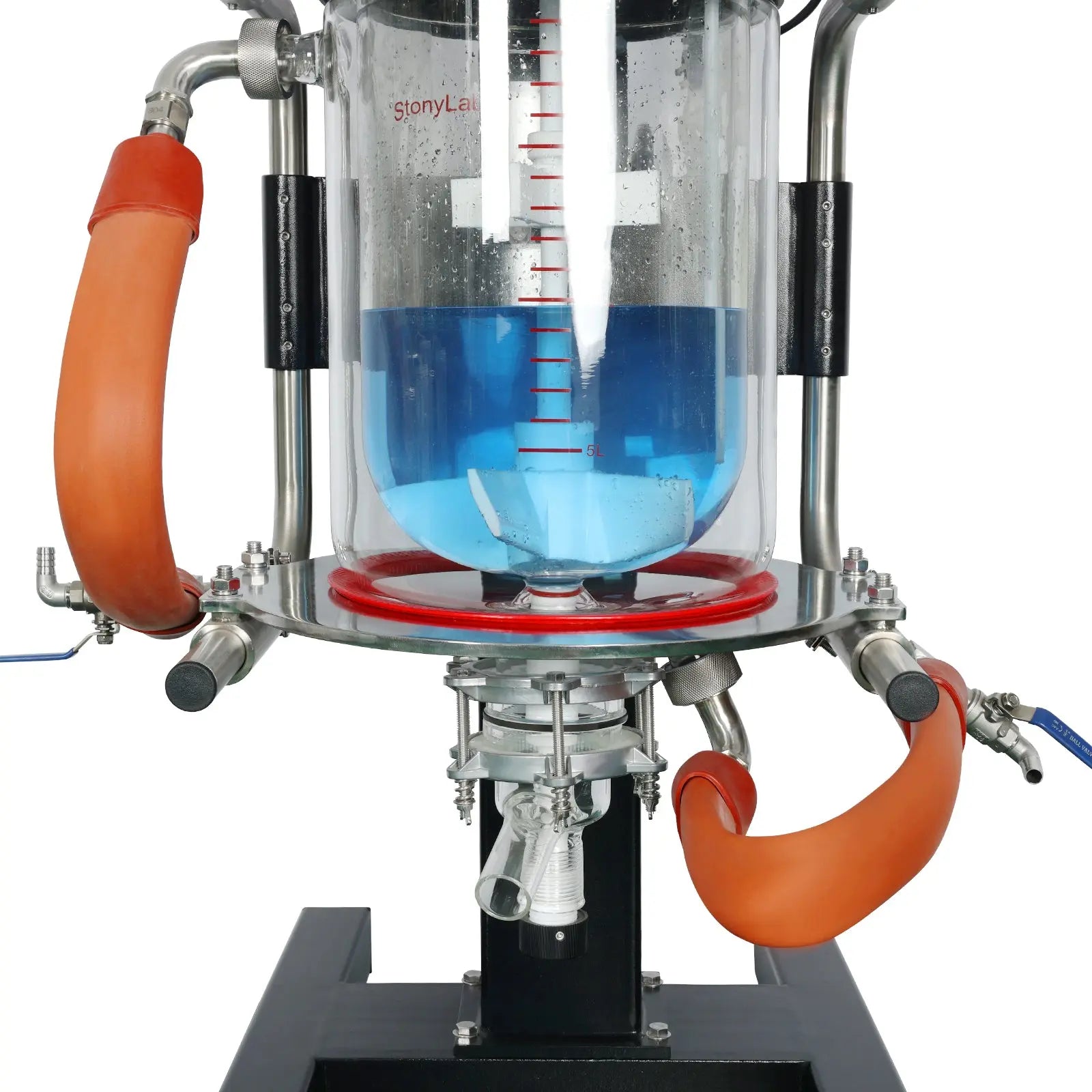

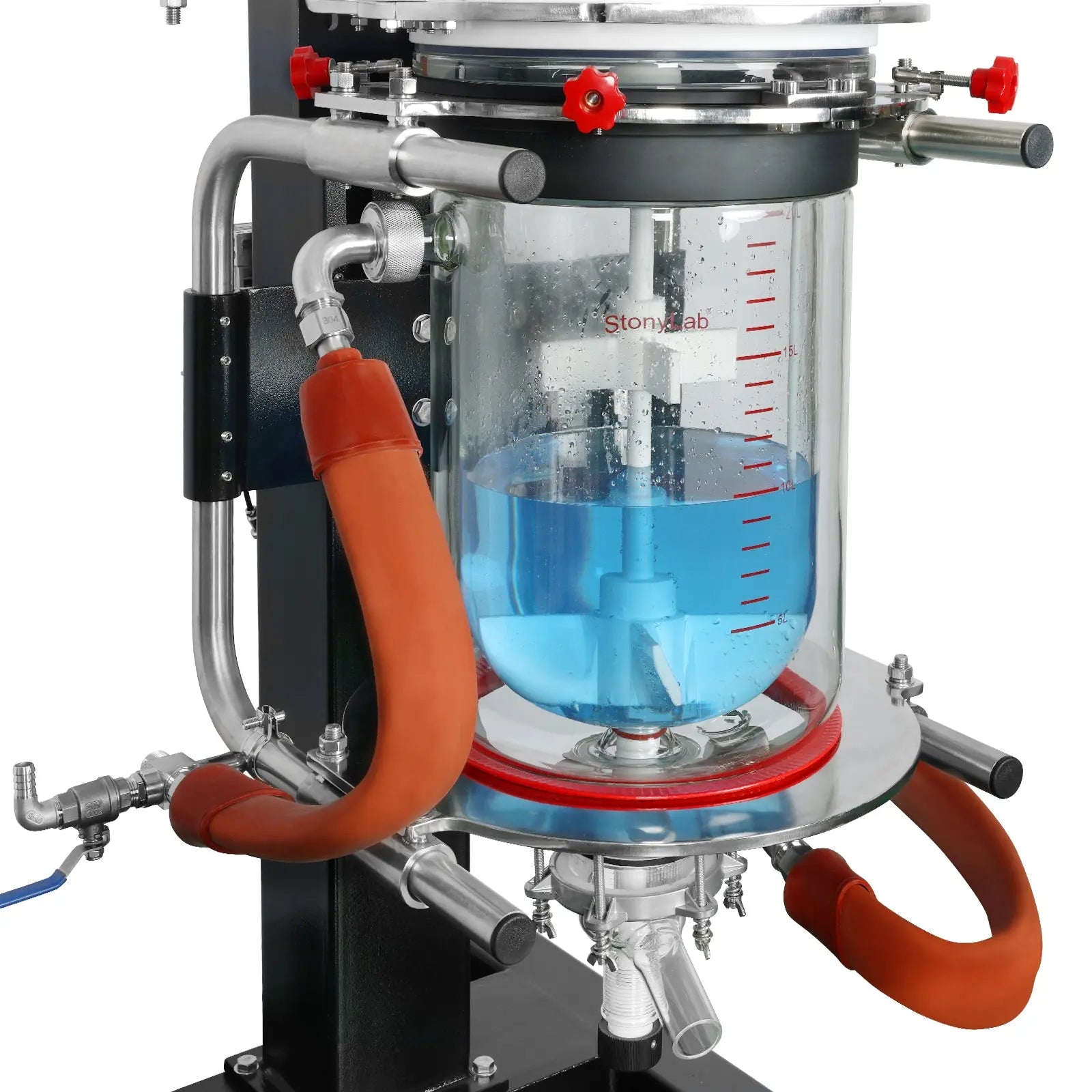

- 20L Borosilicate Glass Reaction Vessel – Offers excellent chemical resistance and clear visibility throughout the reaction process.

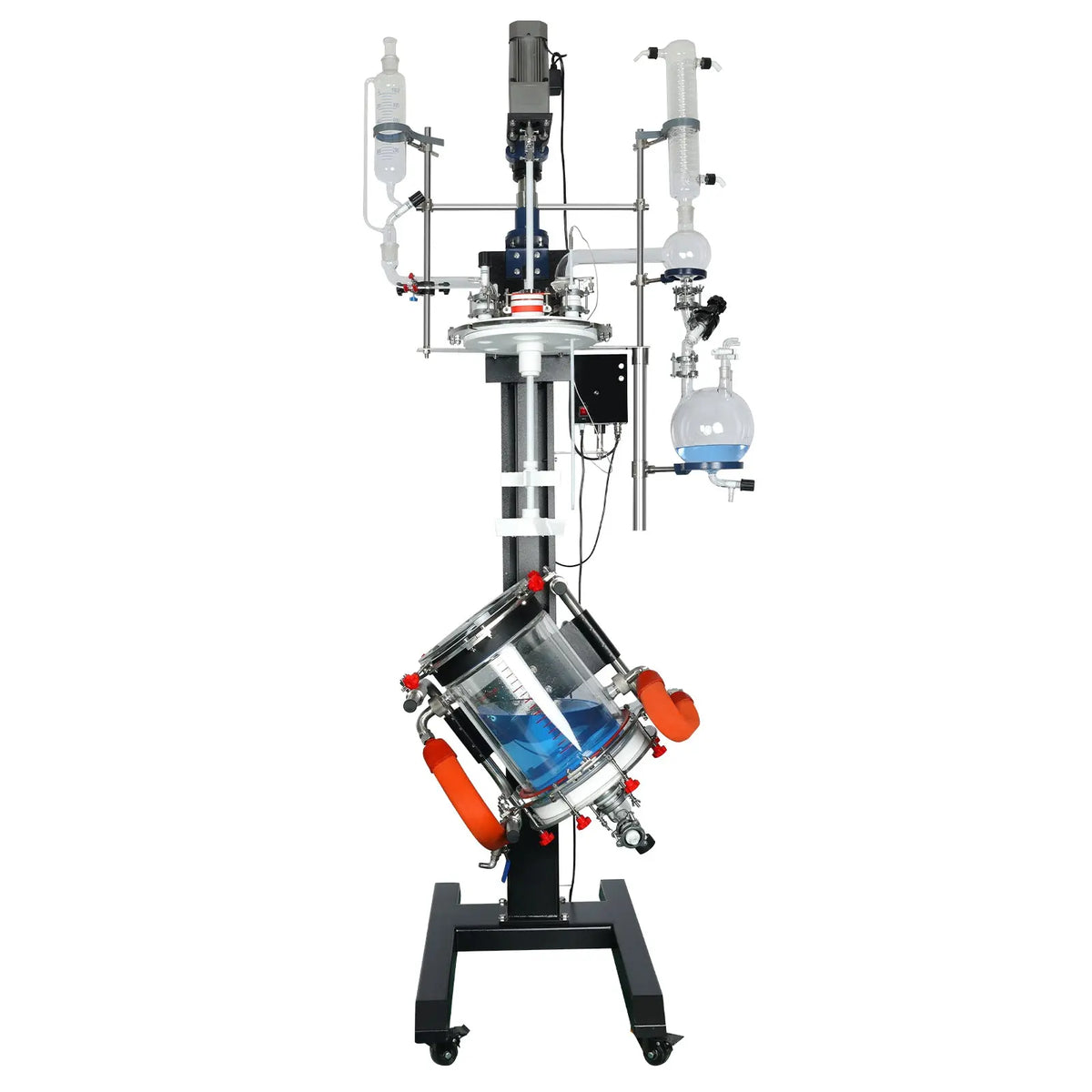

- Integrated Lifting Mechanism – Allows convenient adjustment of vessel height for easier operation, cleaning, and material handling.

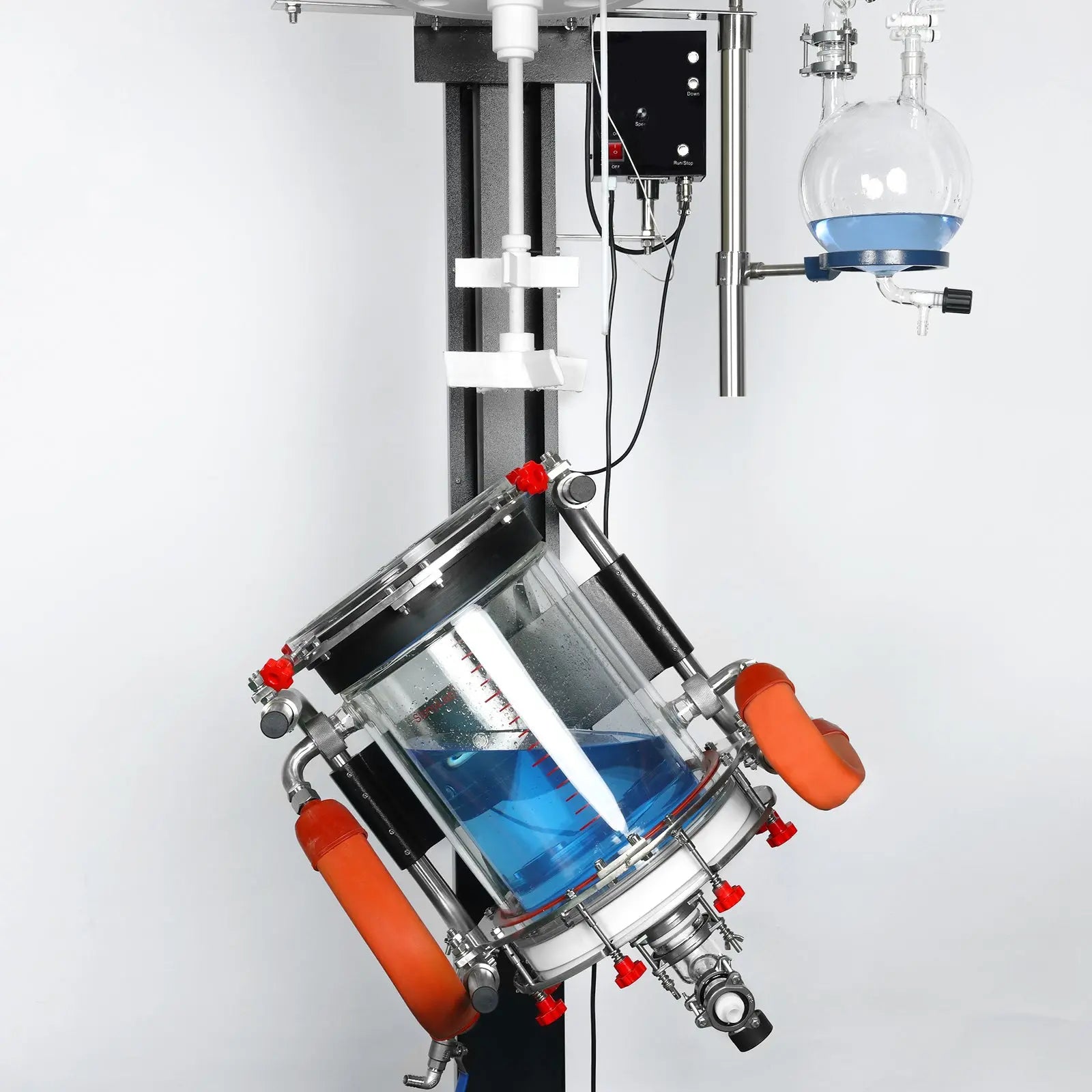

- Rotary Mixing Function – Promotes efficient mixing and uniform reactant distribution.
- Jacketed Temperature Control Design – Supports external heating and cooling circulation for precise thermal regulation.
- Efficient Stirring System – Maintains homogeneous temperature and composition throughout the reaction.
- Pilot-Scale Capacity – Suitable for process development, scale-up studies, and advanced laboratory applications.
- Transparent Reactor Construction – Enables real-time observation and process monitoring.
Typical Applications: Chemical Synthesis, Pharmaceutical Process Development, Crystallization Studies, Extraction and Purification, Distillation Processes, Polymer Research, Pilot-Scale Process Optimization, Scale-Up Validation Studies
Why Choose This Reactor System?
The 20L Jacketed Glass Reactor System combines flexible operation, precise temperature control, and efficient mixing in a versatile pilot-scale platform. Its larger working capacity supports process development and scale-up research while maintaining excellent reaction visibility and operational control. Designed for demanding laboratory and pilot-scale environments, it offers a reliable solution for chemical, pharmaceutical, and materials research applications.
