H-Type Electrolytic Cells with PTFE Lids and Electrodes
H-Type Electrolytic Cells with PTFE Lids and Electrodes
SKU:
Couldn't load pickup availability
Processing: 1-3 business days. Shipping: 3-7 business days.
- Commonly used in electrochemical experimental tests and measurement like CO2RR, NRR and more
- The ion membrane (NOT included) between two chambers can be replaced easily; three electrode system for a better control and measurement

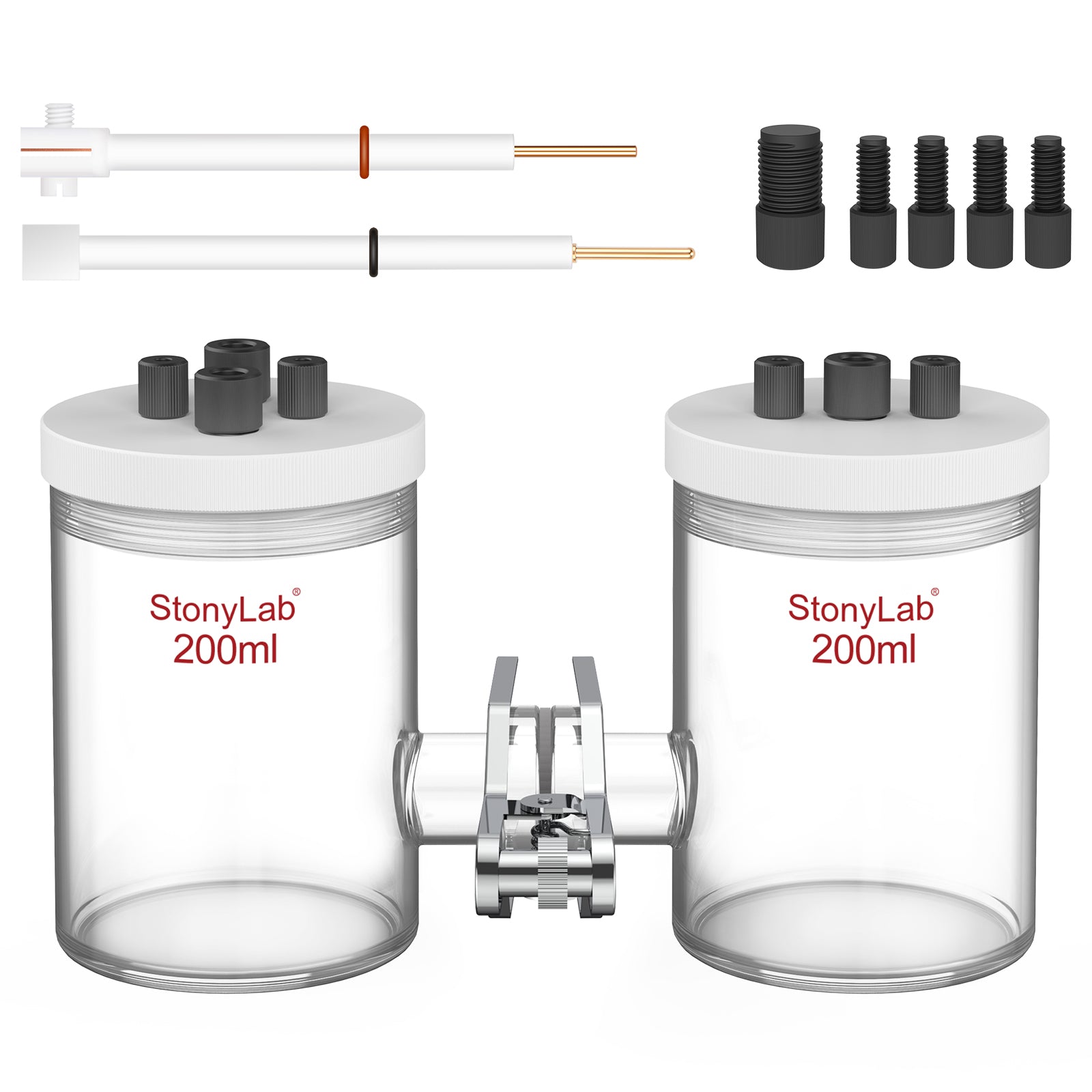

- Components include 2x 200 ml borosilicate glass cell, hollow screws and sealing screws, 2x PTFE cell lid, gasket silicone seal, 1 metal clip, together with 1 copper electrode holder and 1 platinum electrode

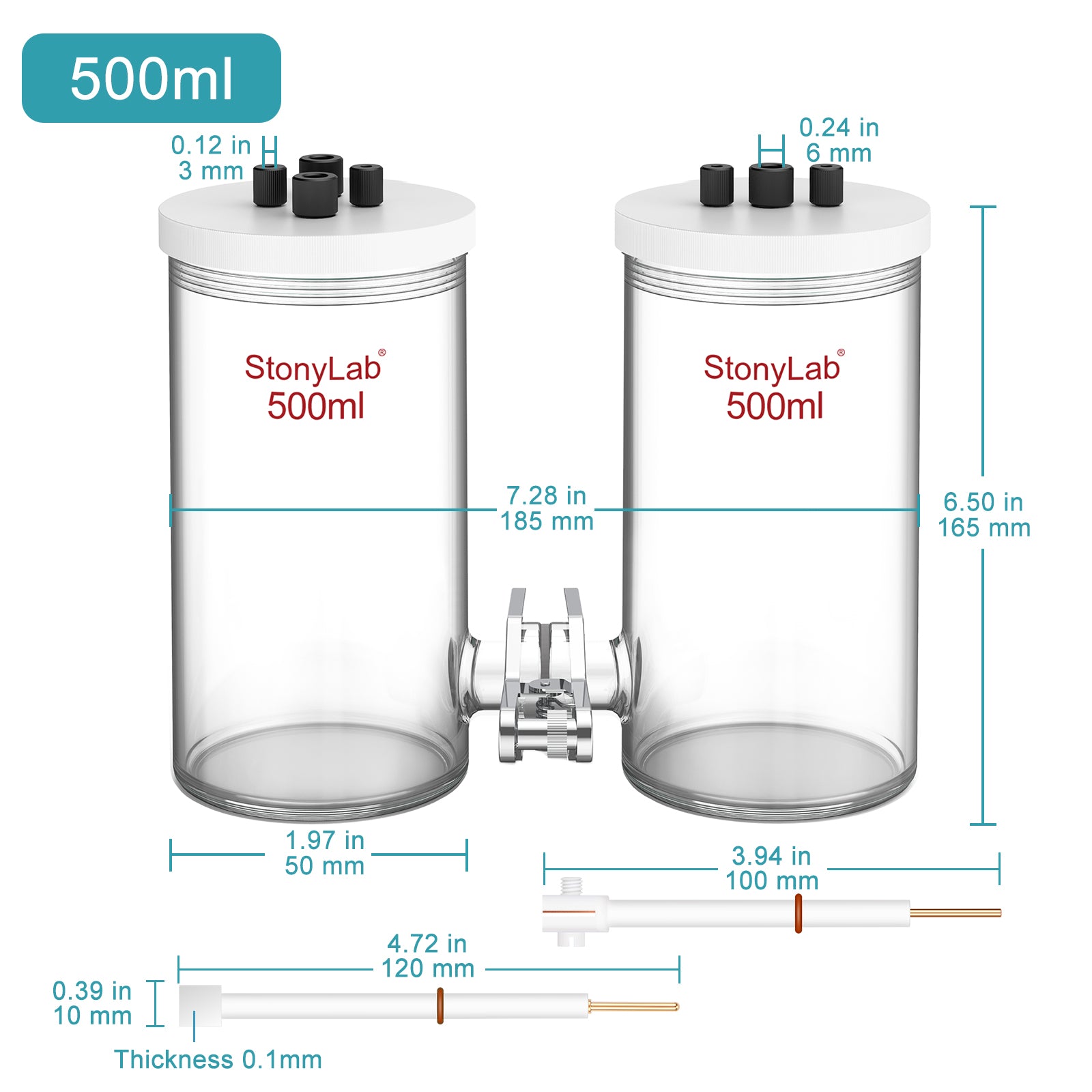

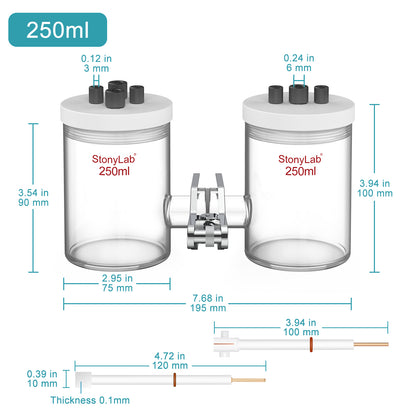

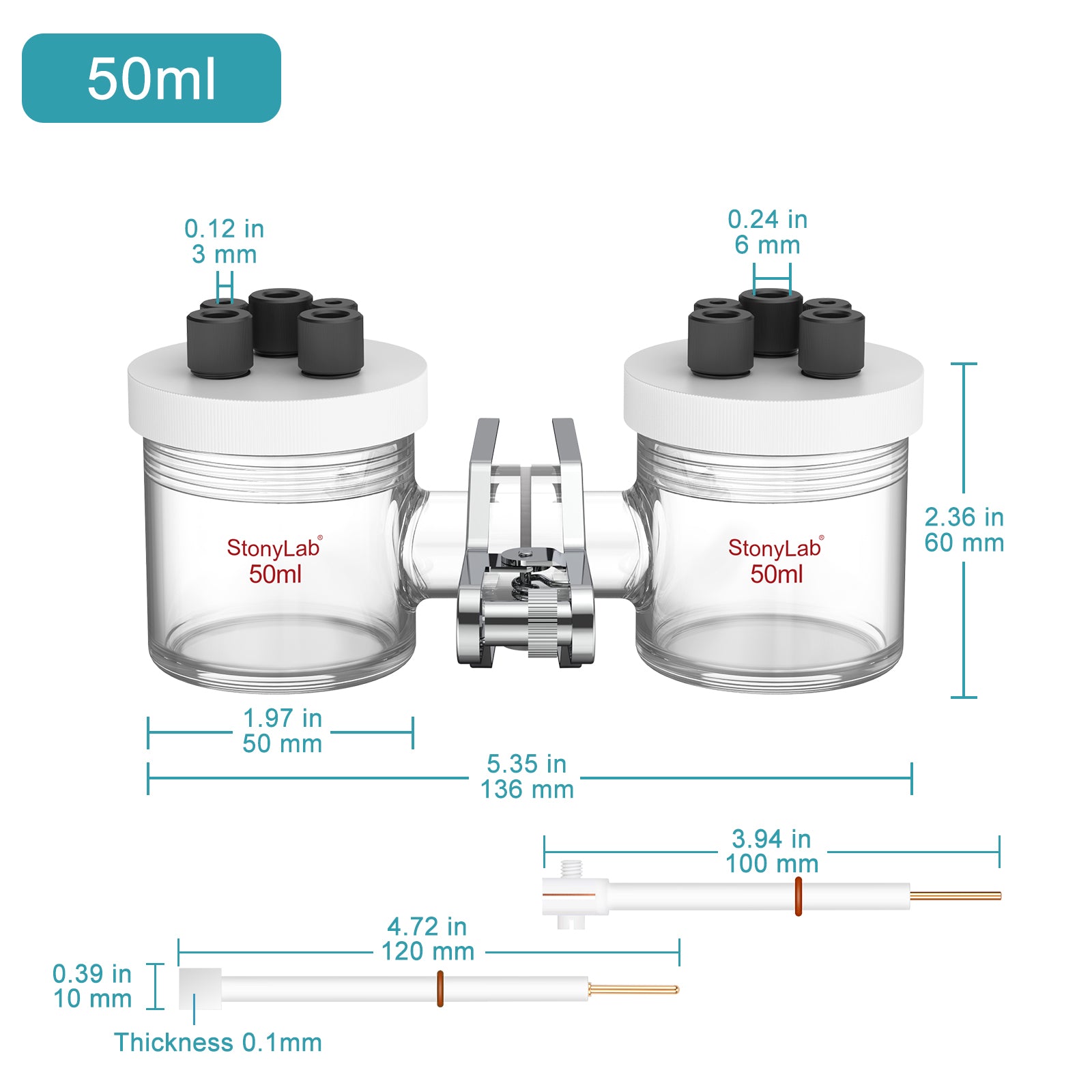

- Interface Between Two Vessels: About 31.3mm OD and 15.2mm ID
Contact Us
Contact Us
100% Satisfaction! Please feel free to contact us anytime. All your questions will be answered within timely manner.
Shipping Worldwide
Shipping Worldwide
Yes, StonyLab offers delivery service to customers worldwide! Free standard shipping on labware orders in the US.
2-Year Comprehensive Warranty
2-Year Comprehensive Warranty
Rest easy knowing that all web registered members receive a 2-Year Comprehensive Warranty on their purchases.
Price Adjustment
Price Adjustment
Buy with confidence! Our 10-day Price Adjustment policy ensures you get the best deal.
Share
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer 50-ml](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184469751.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184469544.jpg?v=1714125466&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184469672.jpg?v=1717208657&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer 100-ml](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184469844.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer 250-ml](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184469967.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer 500-ml](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184470064.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-178453539.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-178453647.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184525767.jpg?v=1715305218&width=1445)
![H-Type Electrolytic Cells with PTFE Lids and Electrodes Electrochemistry - Electrolyzer 200-ml](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic-Cells-with-PTFE-Lids-and-Electrodes-stonylab-184525873.jpg?v=1715305218&width=1445)
![](http://stonylab.com/cdn/shop/files/H-Type-Electrolytic_Cells.png?v=1700190214&width=1000)
![](http://stonylab.com/cdn/shop/files/2_22.jpg?v=1683796889&width=1000)
![](http://stonylab.com/cdn/shop/files/6_0f264f89-81af-48f8-b76f-3218daed2331.jpg?v=1683798396&width=1000)
![](http://stonylab.com/cdn/shop/files/1464x600-3.jpg?v=1698289489&width=1000)
Questions & Answers
Have a Question?
-
What is the dimensions of the interface between the two glass pieces?
Dear Customer,
Please see the specifications below:
Inner Diameter: 15.2mm
Outer Diameter: 31.3mm
These dimensions are consistent across all variants. Manual measurements may have slight errors. Pictures are attached for reference.
Thanks,
StonyLab Team -
Hi,Does this product include the stainless spherical pinch clamp? If not, what size of pinch clamp should I buy?
Dear Customer,
Yes, the clamp is included.
Thanks,
StonyLab Team -
I am planning to perform Hydrogen diffusion test. Is it possible to replace the mebrane with metal sheet for hydrogen diffusion.
Dear Customer,
Yes, you can use metal sheet for hydrogen diffusion.
Thanks,
StonyLab Team
Perfect fit for what you are purchased it for.
The product is of good quality, but I needed two platinum electrodes, which forced me to purchase another platinum sheet electrode separately. So I only give it four stars.
The packaging of sponge, very good
I was surprised to find they were firm and performed as advertised.Good value for the money.
Very professional.
