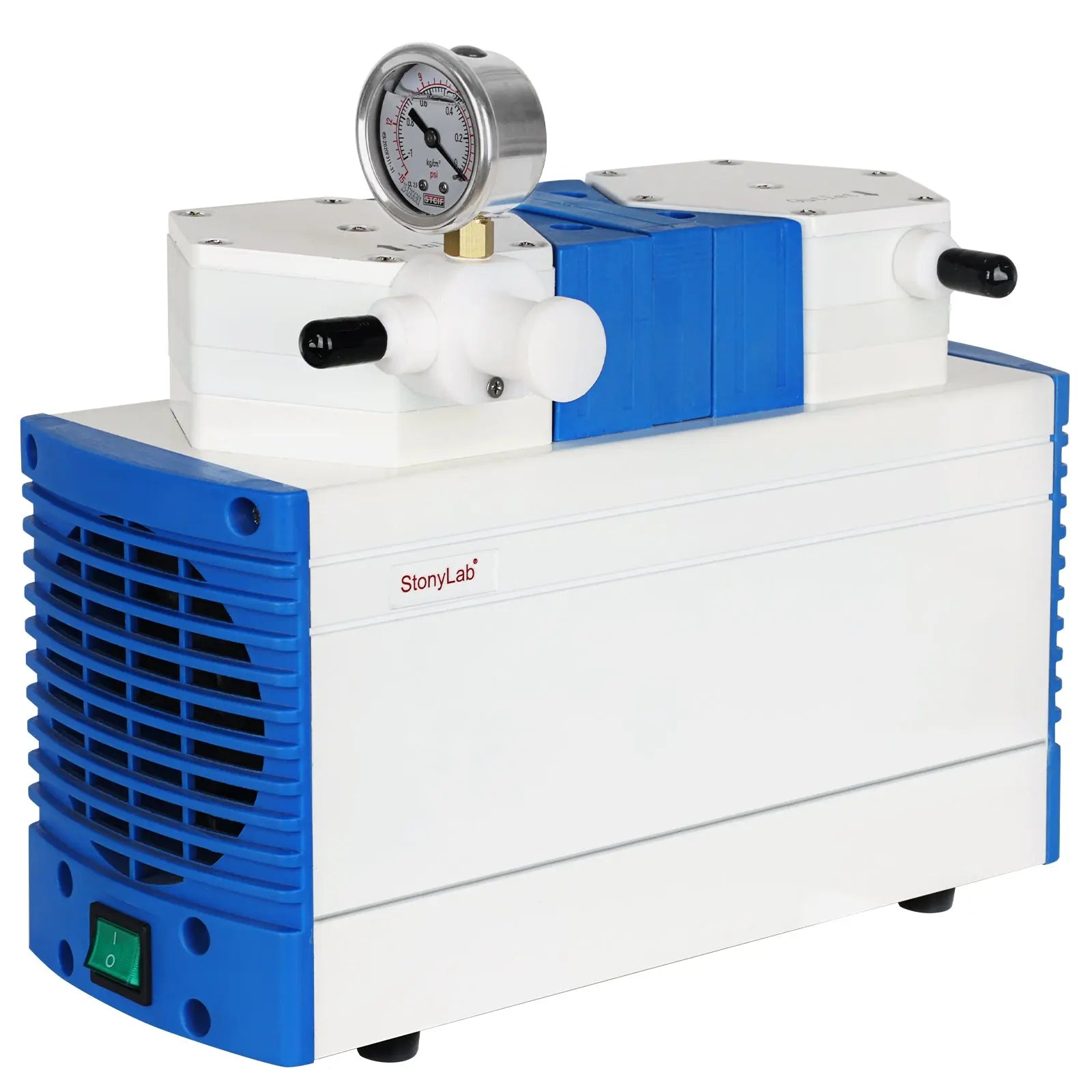

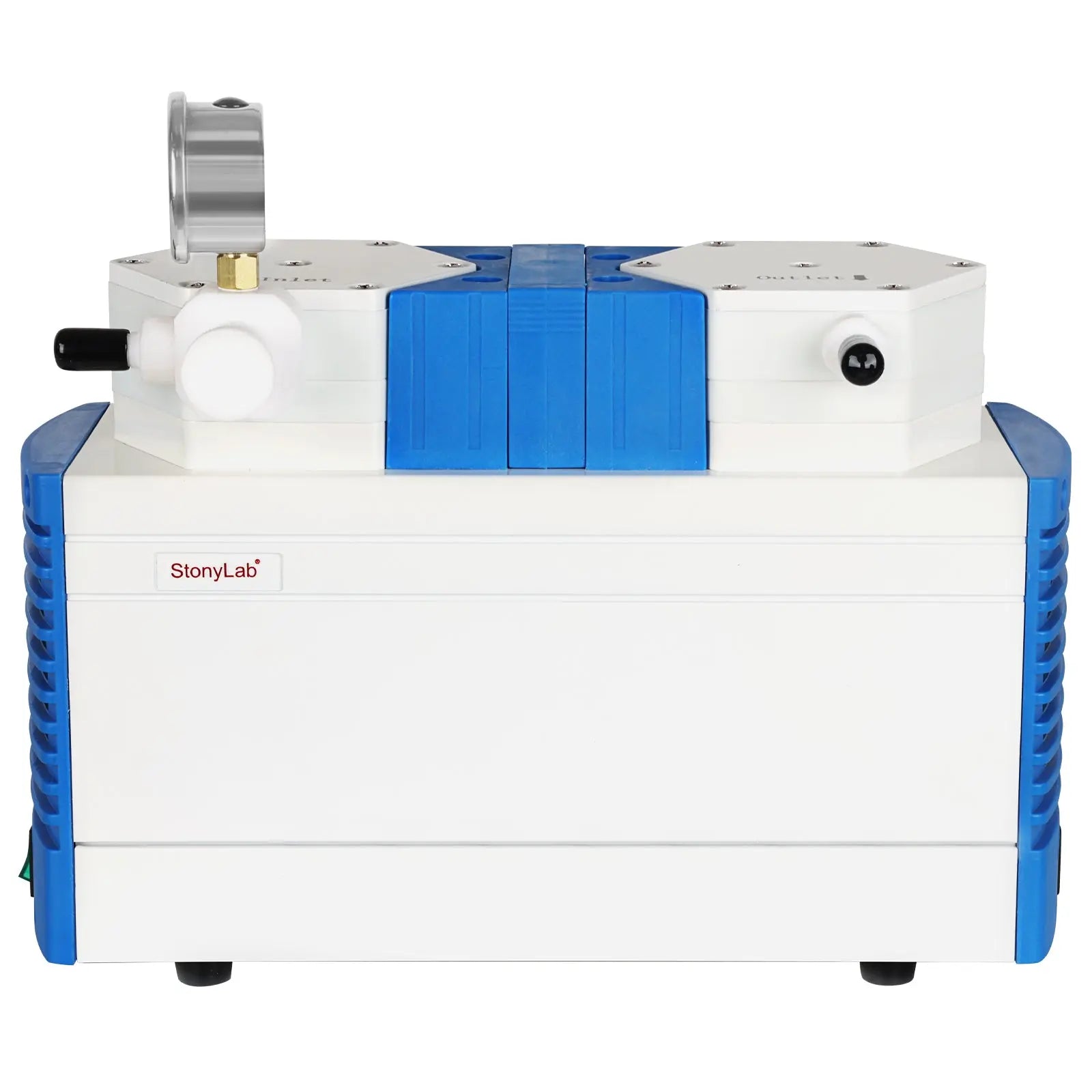

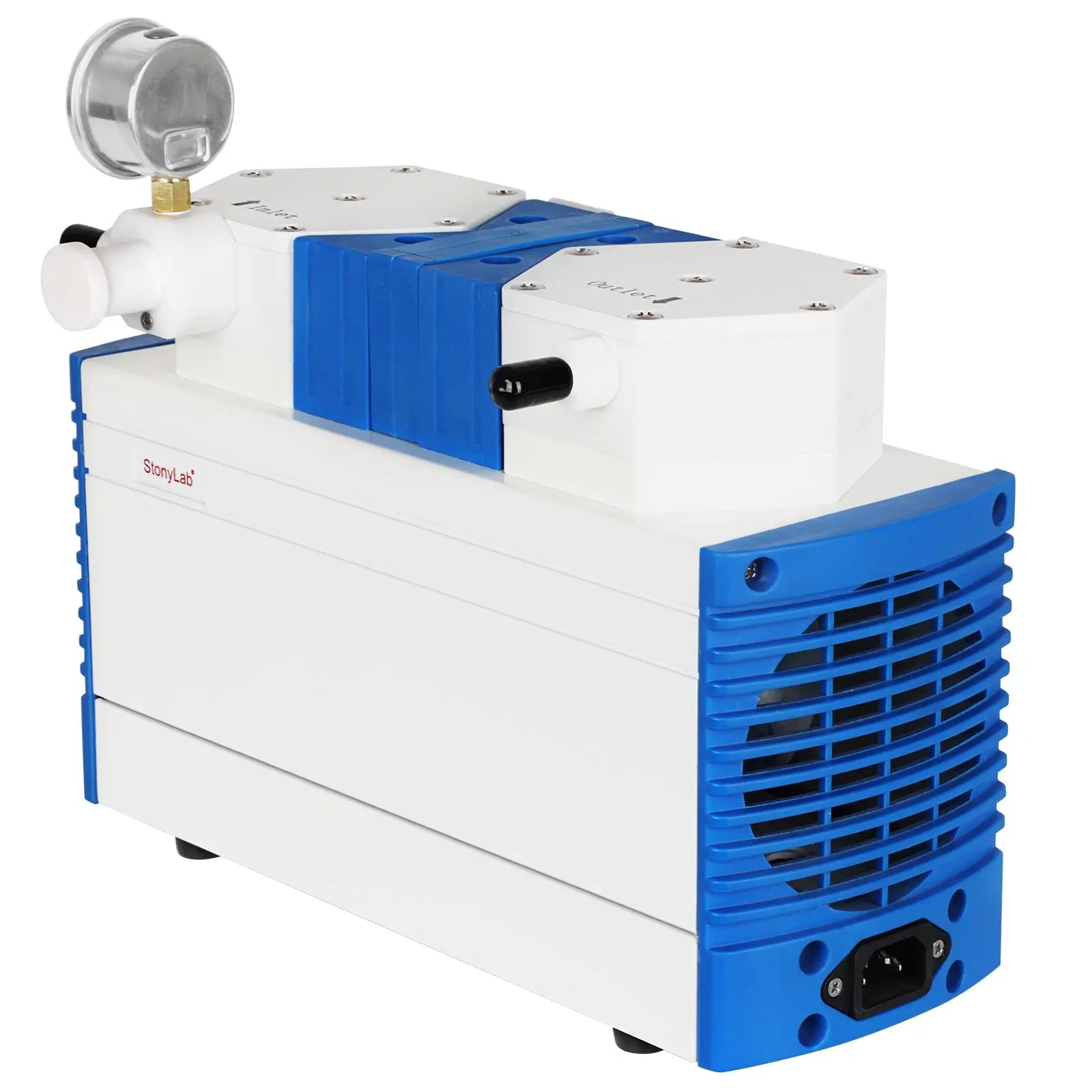

Laboratory Chemical Vacuum Diaphragm Membrane Vacuum Pump
SKU:
Couldn't load pickup availability
Processing: 1-3 business days. Shipping: 3-7 business days.
Feature
-

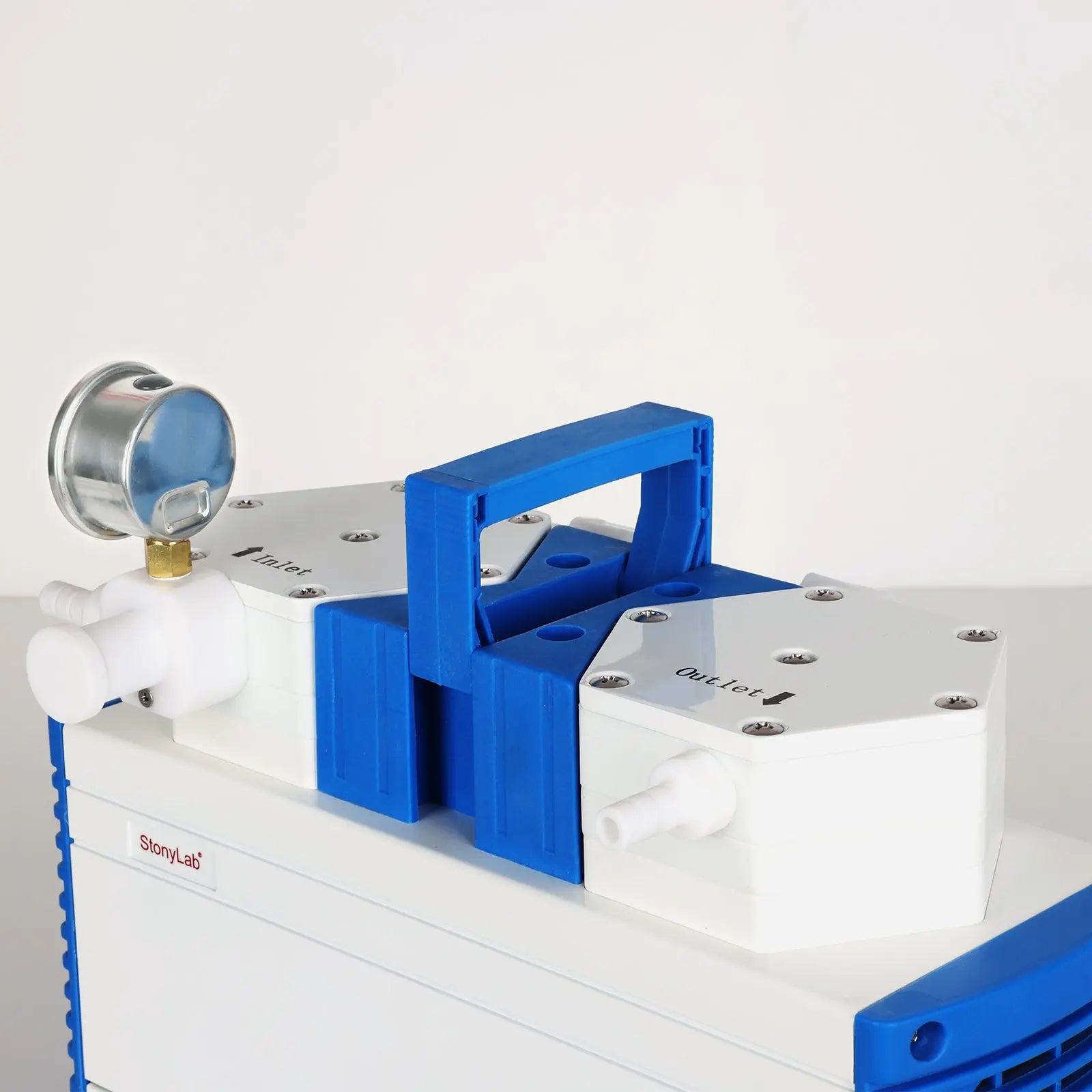

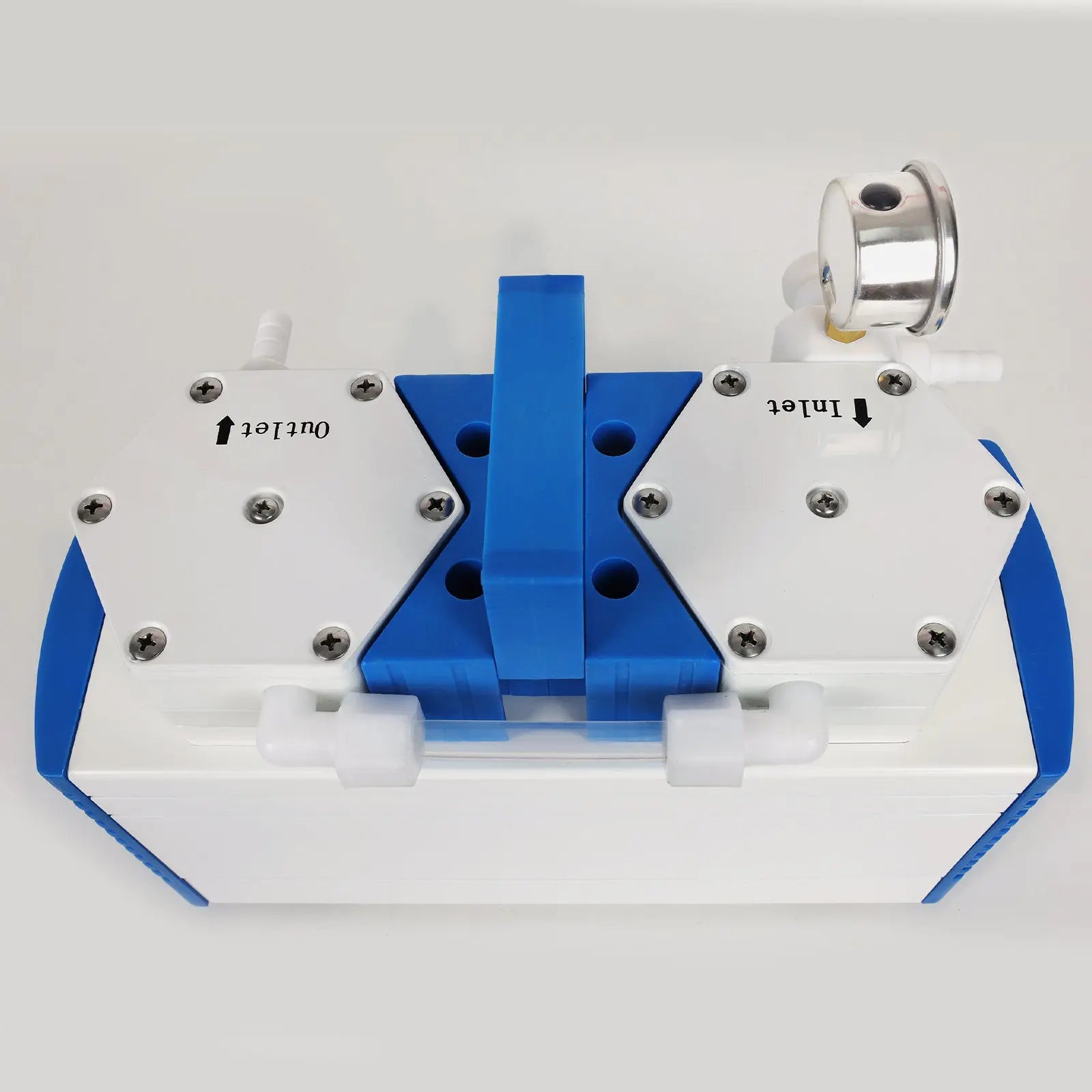

StonyLab diaphragm pump operates in two stages and handles gas media, while being both pollution-free and maintenance-free.
-
All components that come in contact with gas are constructed using polytetrafluoroethylene (PTFE) material, which is highly resistant to corrosion and suitable for a wide range of applications.
-
To enhance the pump's corrosion resistance, special diaphragms with composite PTFE coatings and pump head designs are employed.
Specification
SKU | SB-HX-GMZKB-20 |
Rated Voltage/Frequency | 220V/50Hz |
Rated Power | 120W |
Pump Head Type | Dual-stage pump |
Ultimate Vacuum | 6-8 mbar |
Maximum Operating Pressure | 1 bar |
Maximum Flow Rate | 20 L/min |
Interface Specification | 10 mm |
Medium And Ambient Temperature | 5~40°C |
Ambient Relative Humidity | <80% |
Pump Head Material | PTFE |
Composite Diaphragm Material | HNBR+PTFE (Non-standard, accept customization) |
Valve Plate Material | FKM/FFPM (Non-standard, accept customization) |
Vacuum Gauge | No vacuum regulator |
Solids Discharge Valve | Included |
Operating Mode | Continuous |
Noise | <55 db |
Rated Speed | 1450 rpm |
Dimensions | 315x165x210 mm |
Package Dimensions | 470x330x270 mm |
Net Weight | 9.6 kg |
Gross Weight | 11 kg |
SKU | SB-HX-GMZKB-20B |
Rated Voltage/Frequency | 220V/50Hz |
Rated Power | 120W |
Pump Head Type | Dual-stage pump |
Ultimate Vacuum | 6-8 mbar |
Maximum Operating Pressure | 1 bar |
Maximum Flow Rate | 20 L/min |
Interface Specification | 10 mm |
Medium And Ambient Temperature | 5~40°C |
Ambient Relative Humidity | <80% |
Pump Head Material | PTFE |
Composite Diaphragm Material | HNBR+PTFE (Non-standard, accept customization) |
Valve Plate Material | FKM/FFPM (Non-standard, accept customization) |
Vacuum Gauge | With vacuum regulator |
Solids Discharge Valve | Excluded |
Operating Mode | Continuous |
Noise | <55 db |
Rated Speed | 1450 rpm |
Dimensions | 315x165x210 mm |
Package Dimensions | 470x330x270 mm |
Net Weight | 9.6 kg |
Gross Weight | 11 kg |
SKU | SB-HX-GMZKB-40B |
Rated Voltage/Frequency | 220V/50Hz |
Rated Power | 120W |
Pump Head Type | Dual-stage pump |
Ultimate Vacuum | 6-8 mbar |
Maximum Operating Pressure | 1 bar |
Maximum Flow Rate | 20 L/min |
Interface Specification | 10 mm |
Medium And Ambient Temperature | 5~40°C |
Ambient Relative Humidity | <80% |
Pump Head Material | PTFE |
Composite Diaphragm Material | HNBR+PTFE (Non-standard, accept customization) |
Valve Plate Material | FKM/FFPM (Non-standard, accept customization) |
Vacuum Gauge | With vacuum regulator |
Solids Discharge Valve | Included |
Operating Mode | Continuous |
Noise | <55 db |
Rated Speed | 1450 rpm |
Dimensions | 315x165x210 mm |
Package Dimensions | 470x330x270 mm |
Net Weight | 9.6 kg |
Gross Weight | 11 kg |

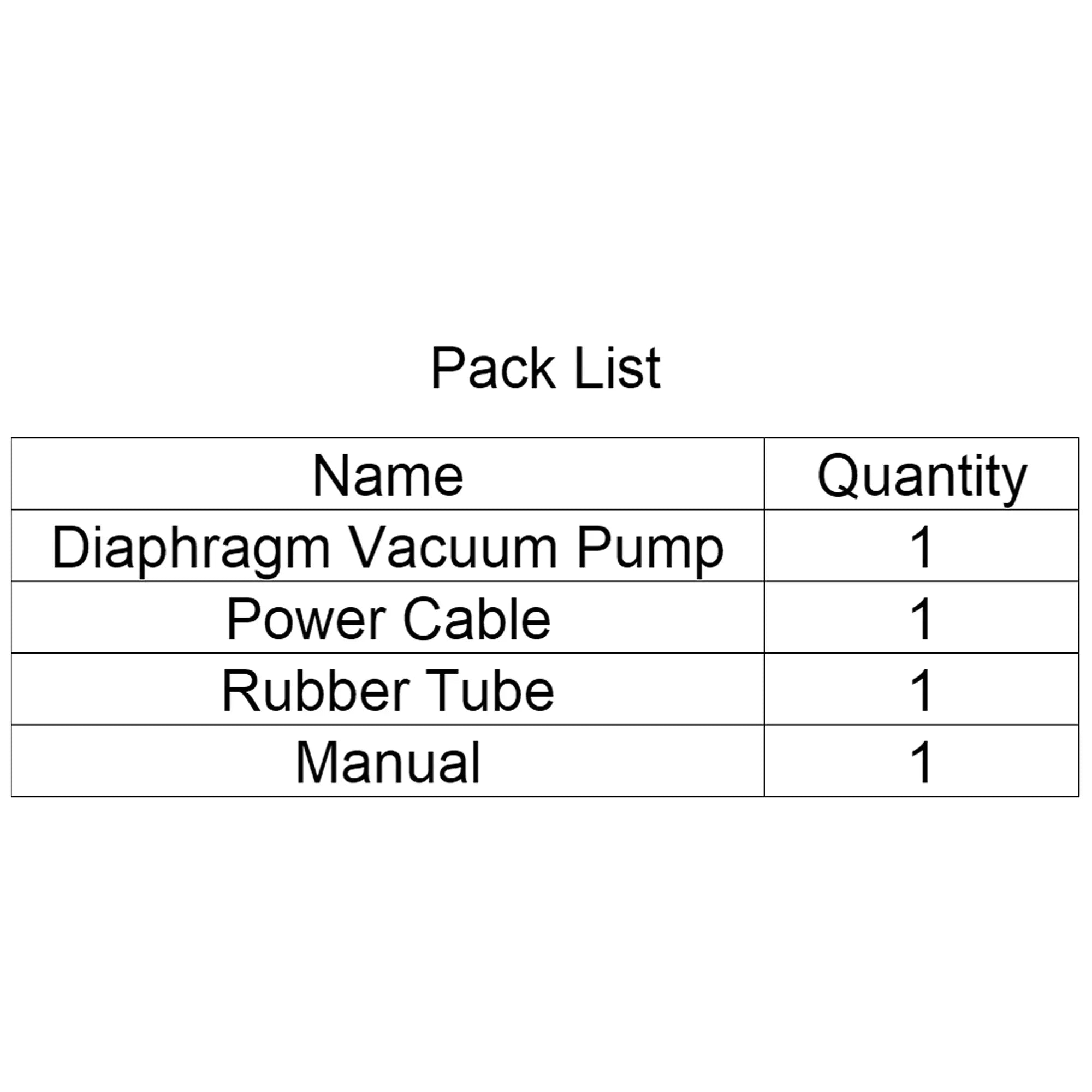

Pack List
Name | Quantity |
Diaphragm Vacuum Pump | 1 |
Power Cable | 1 |
Rubber Tube | 1 |
Manual | 1 |
