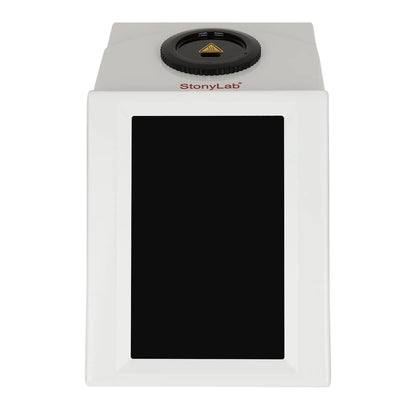

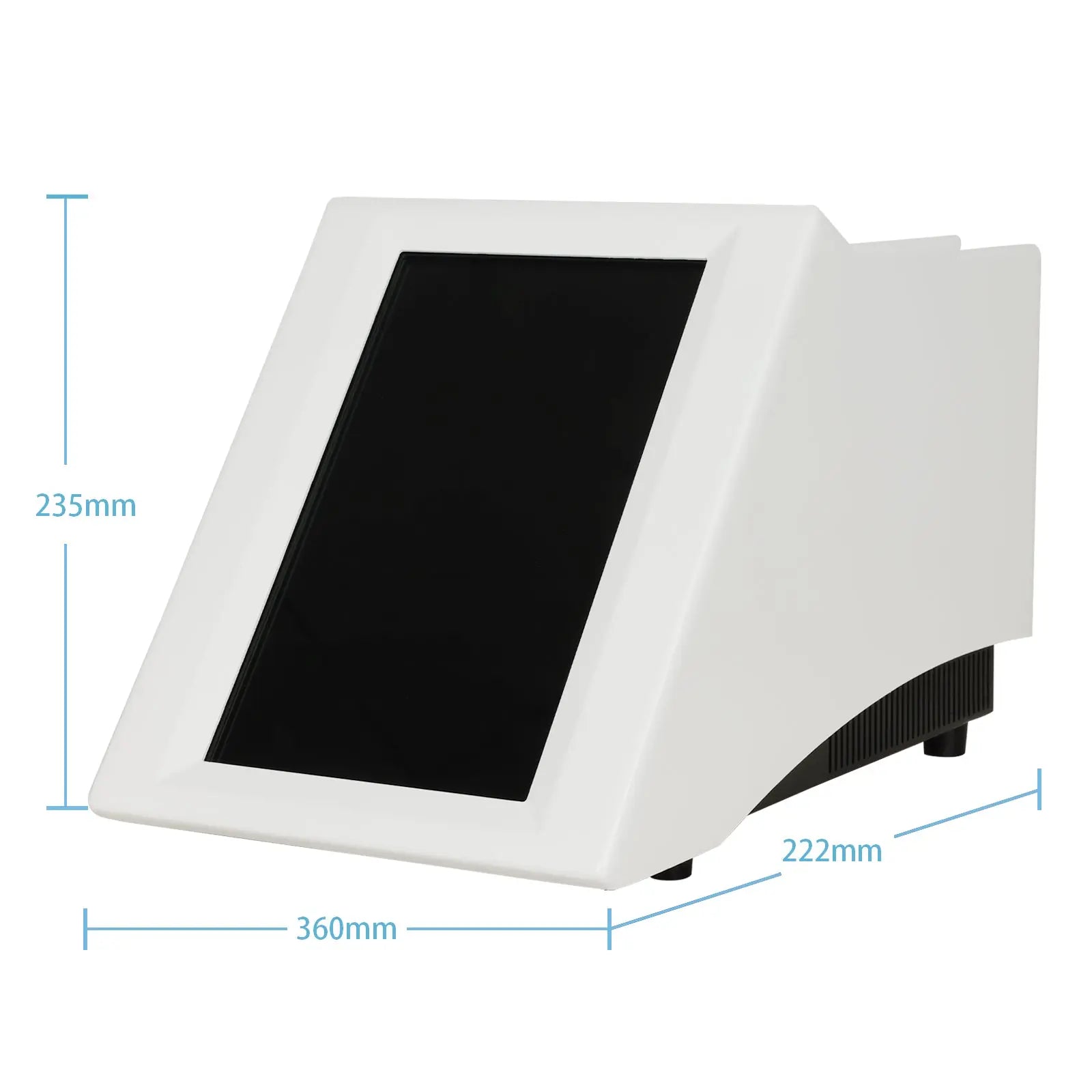

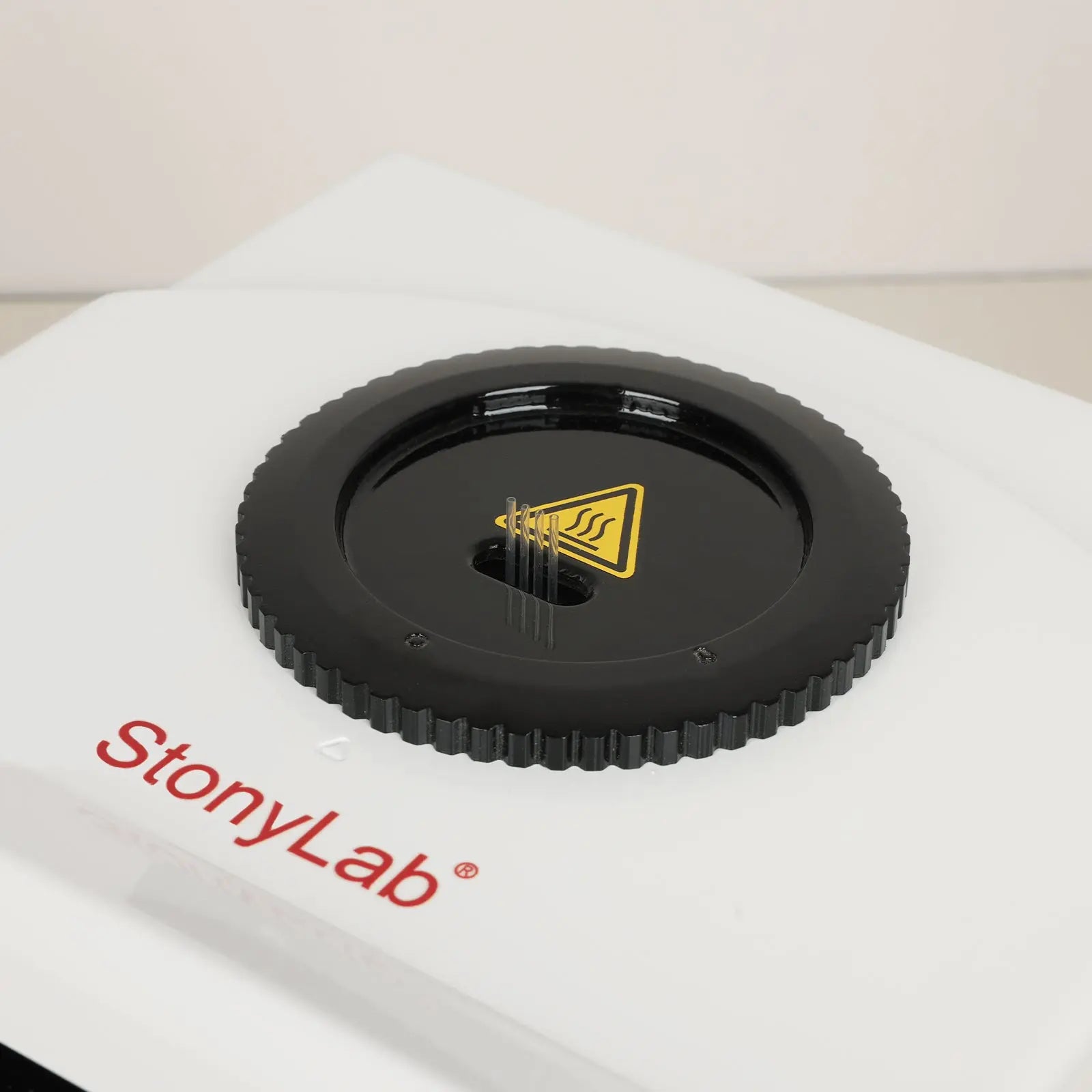

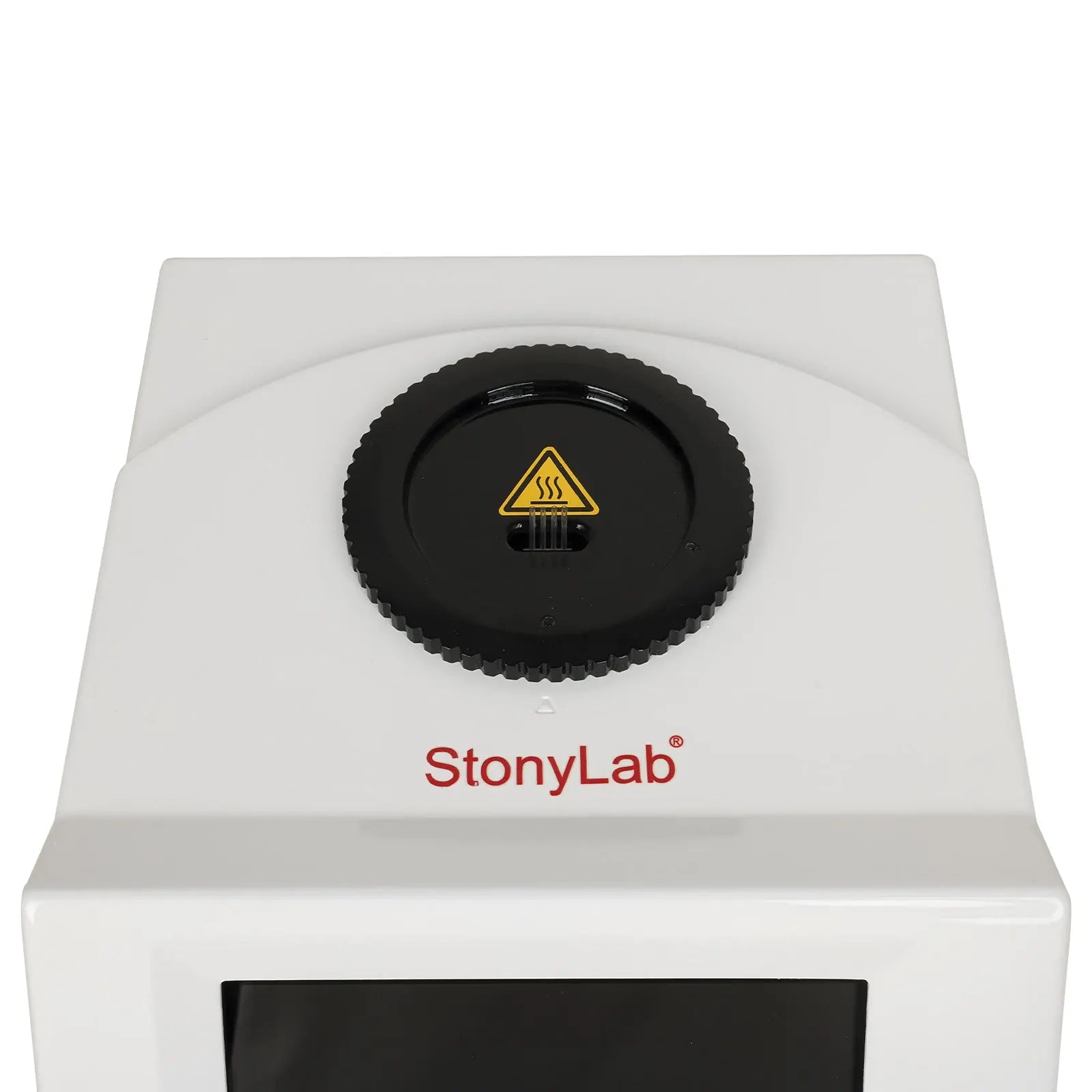

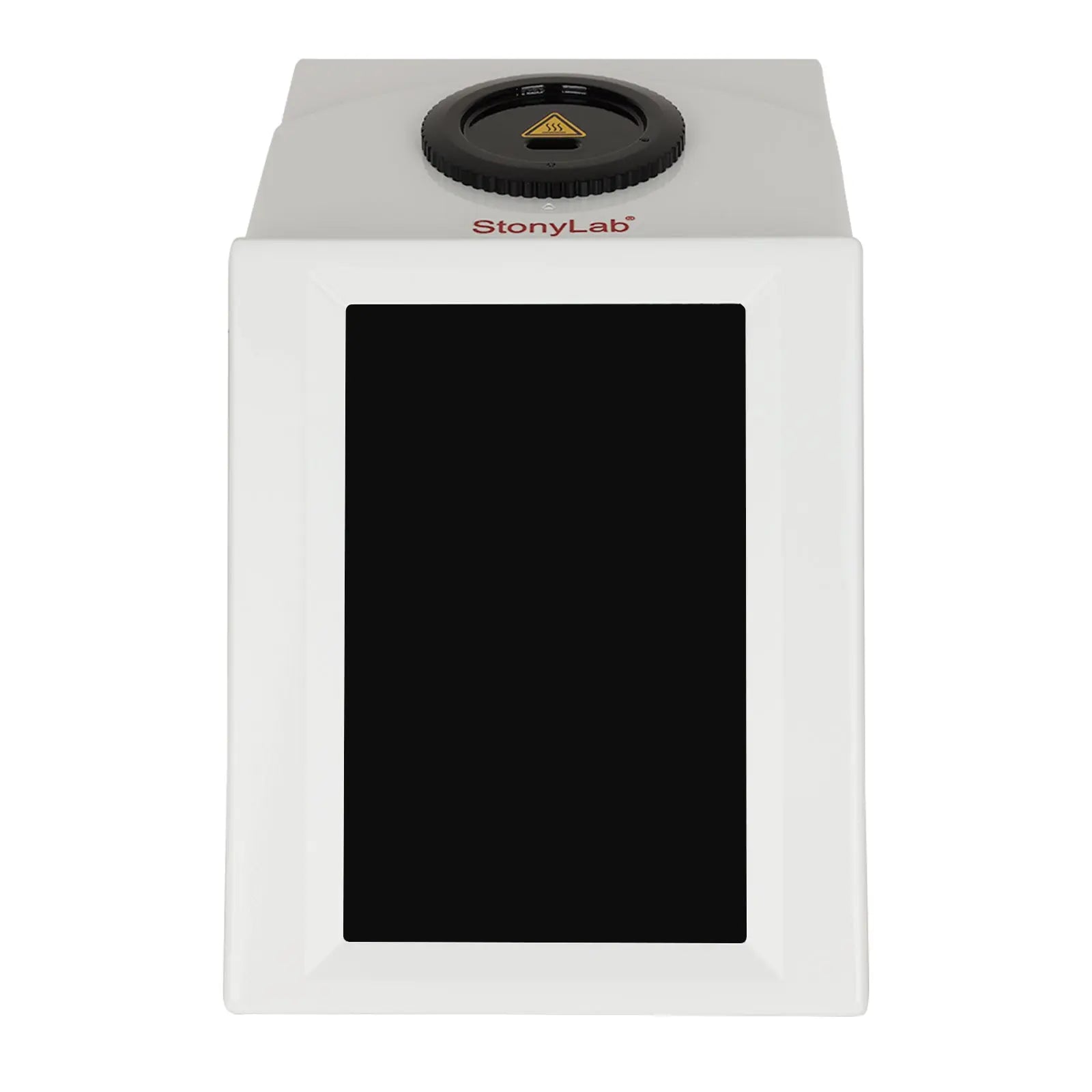

Semi-Automatic Melting Point Meter, RT-400°C, 4 Samples per Run, Video Visual Inspection

Semi-Automatic Melting Point Meter, RT-400°C, 4 Samples per Run, Video Visual Inspection

$2,850.00
-Infinity% $2,850.00 Retail Price:

Tax-FREE for all U.S. orders except New York.

NY Tax-Exempt organization? Contact us.

Power Supply
Temp Range

About this item

  • Audit Tracking & Security: provides full audit tracking with user-level permission management. Super administrators can manage all accounts, track operations, lock/unlock users, and export tamper-proof PDF/Excel data via USB. All actions are fully recorded
  • User Management: supports hierarchical user management. Super administrators assign permissions, while administrators can create multiple users. Each user has a unique login with enable/disable controls for flexible personnel management
  • Data Retrieval: powerful data search function allows users to quickly locate required records within large datasets, improving efficiency

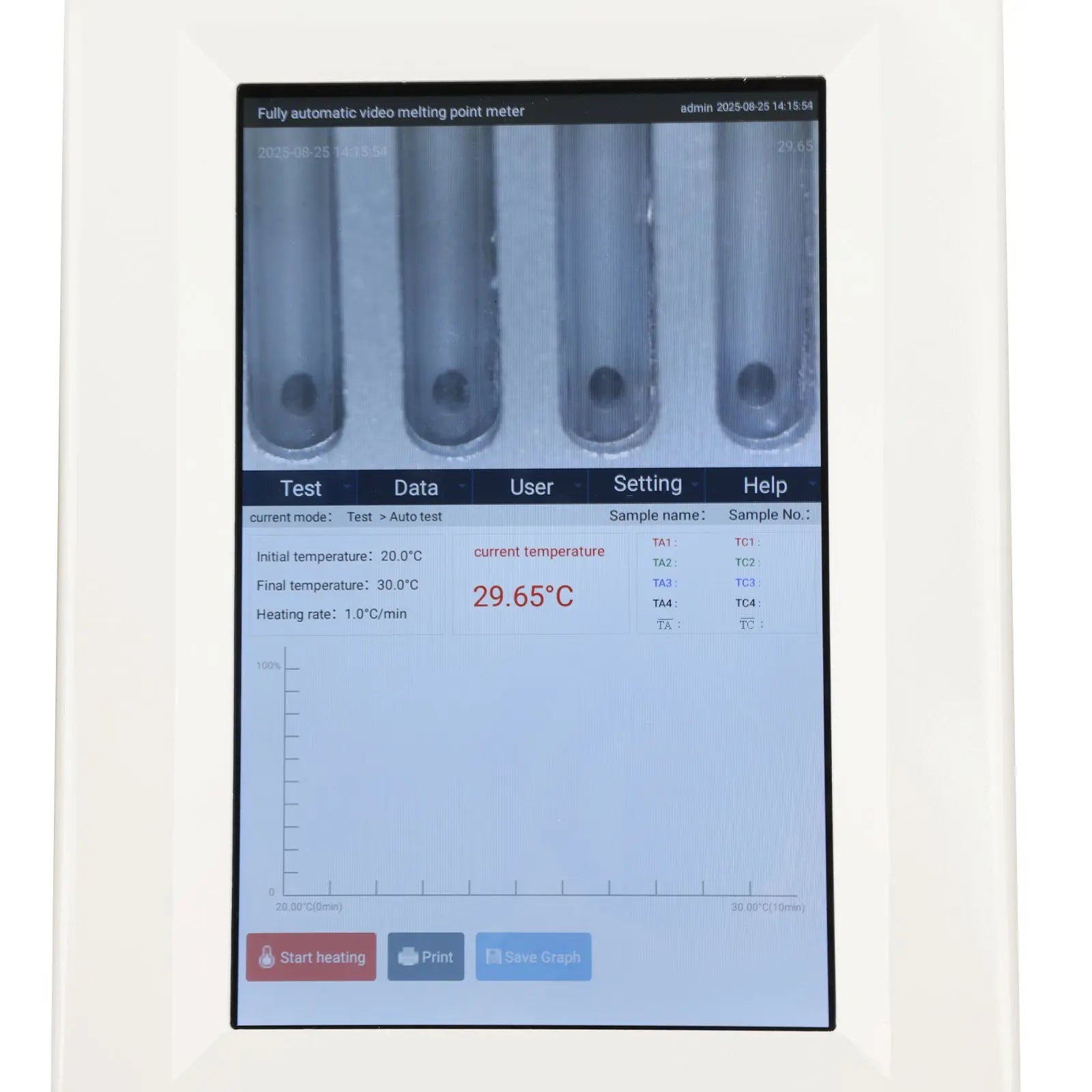

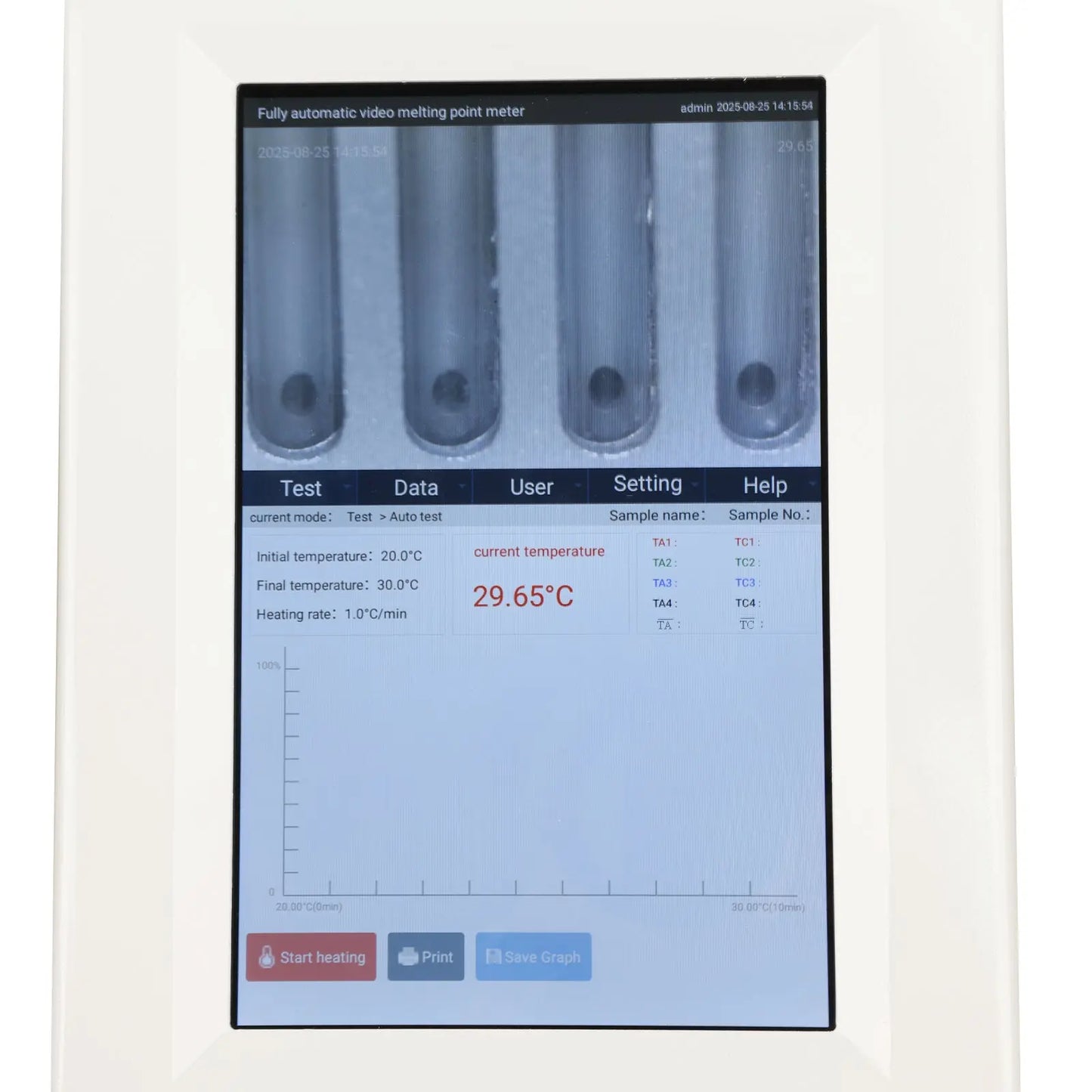

  • Real-Time Graph Display: graphs are displayed in real time during testing for easier analysis. Historical graphs and recorded images can also be replayed
  • Expandable Memory: system memory can be expanded to meet growing data storage needs
  • Easy Software Upgrade: supports automatic software upgrades via USB, eliminating the need to return the device to the factory

Technical Indicators

Model GM30 GM50
Temperature range room temperature - 350°C Room temperature-400°C
Detection mode semi-automatic/manual Manual
Processing capacity 4 per batch (up to four samples can be processed simultaneously)
Judgment ability visual inspection via video
Temperature resolution 0.1°C
Heating rate 0.1°C - 20°C (200 levels, infinitely adjustable)
Temperature control mode precise PID temperature control, fully enclosed furnace design
Heating method conductive liquid heating or electric block air heating (optional)
Temperature rise resolution 0.1°C
Temperature rise rate 0.1°C/min - 20°C/min
Accuracy ±0.3°C (<200°C), ±0.5°C (>200°C) ±2°C (<200°C), ±0.4°C (>200°C)
Repeatability at a temperature rise rate of 0.1°C/min, the melting point repeatability is ±0.1°C
Calibration function Yes
Exploration mode Yes
Video function photographing and filming
Video playback available/with time watermark
High-definition camera observes the melting state of the sample
Magnification =10
User management more than 30, with three-level classification.
Storage space 32GB hard drive, =2GB memory
Testing method Yes
Data storage Yes
Graph saving up to 200
Video saving Yes
Continuous video recording time 50 minutes
Memory expansion Yes
Experimental plan 50 sets
Audit tracking Yes
Network wireless WIFI

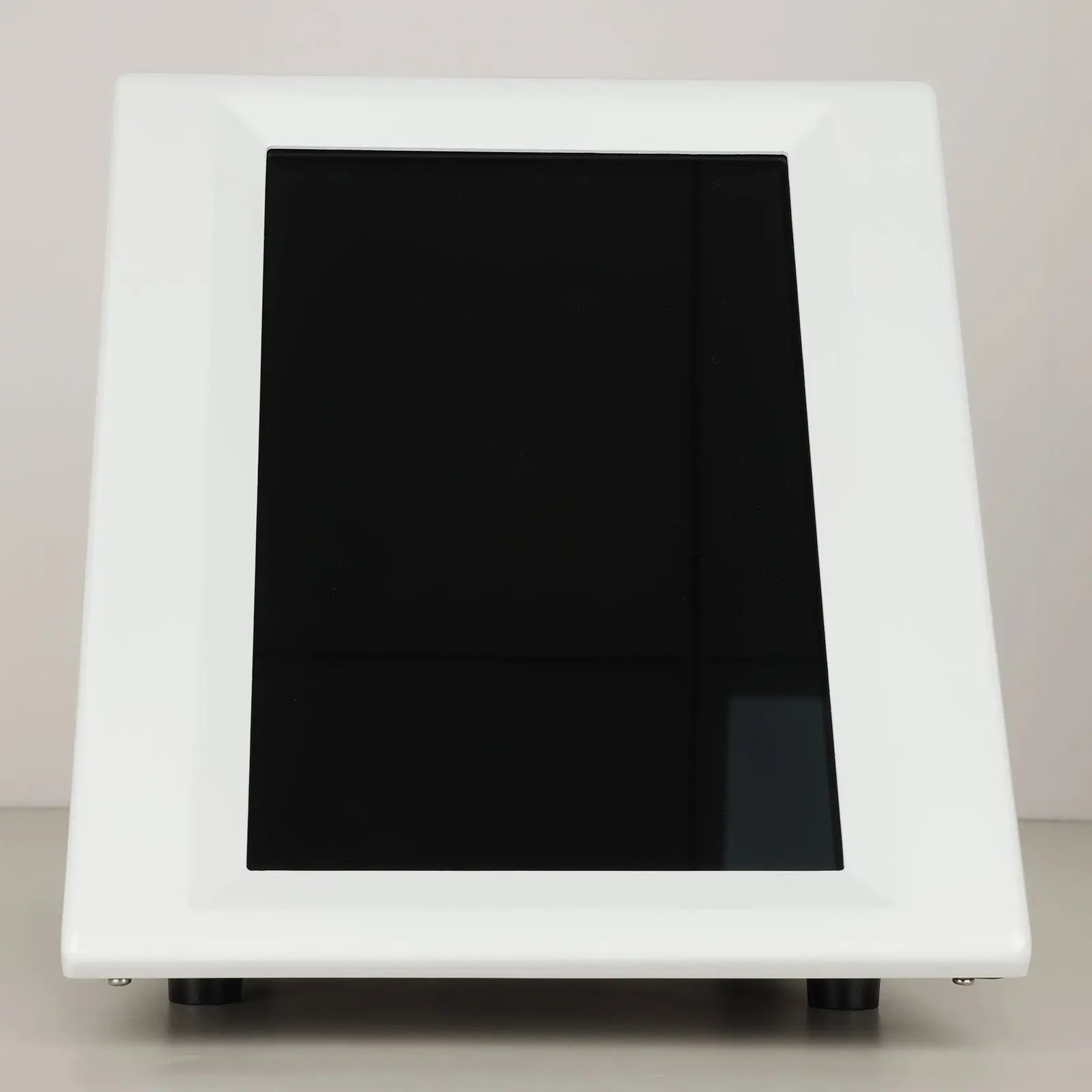

Display 8-inch high-definition color screen

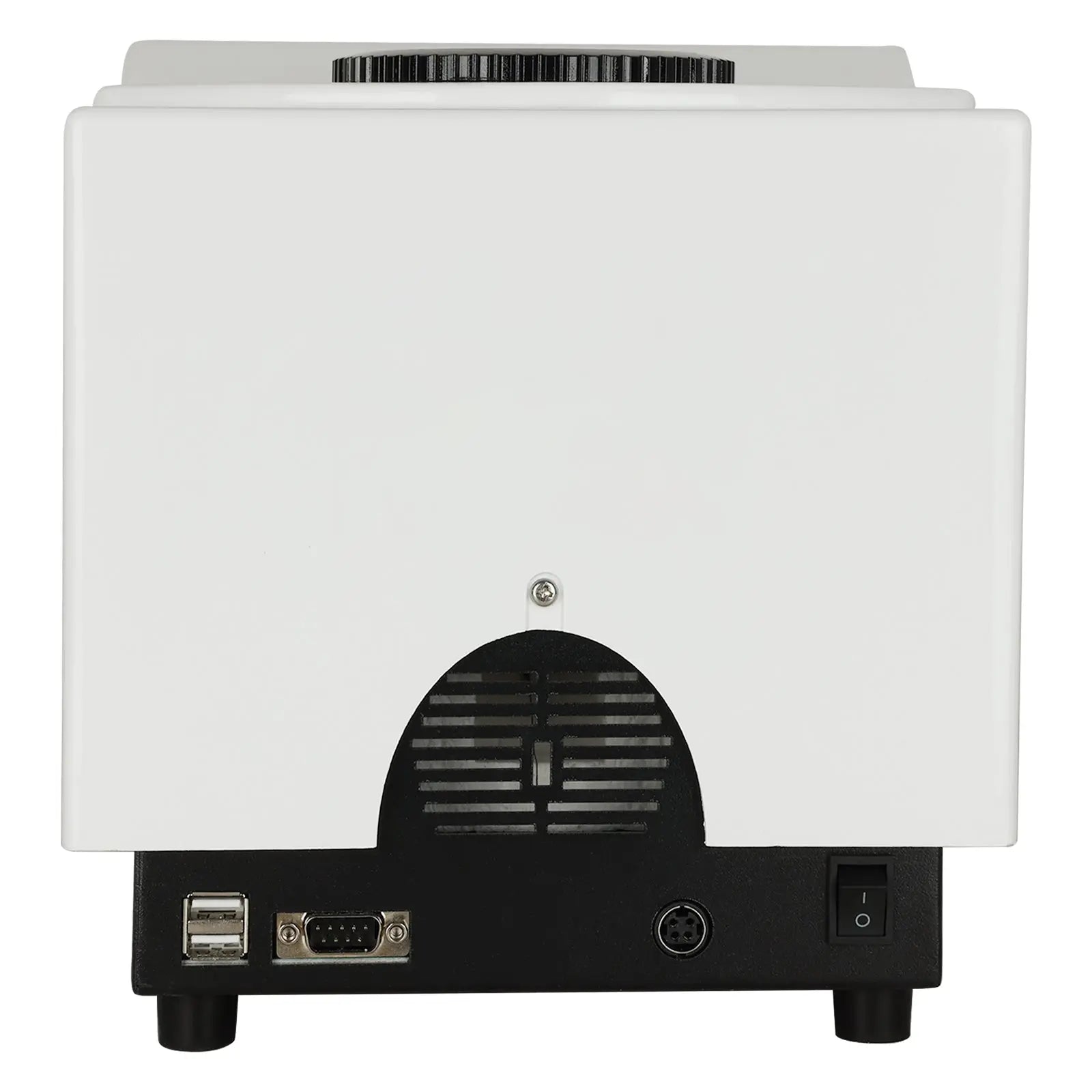

Data interface USB, network WIFI interface, RS232
Data authenticity anti-tampering function
Data export can be exported using a USB drive
Data output format PDF format and EXCL data
Data overflow reminder automatically reminded in advance
Printer optional laser printer or thermal/dot matrix (compatible)
Capillary size outer diameter f1.4mm, inner diameter f1.0mm
Power supply 220V 50HZ
Power 120W
