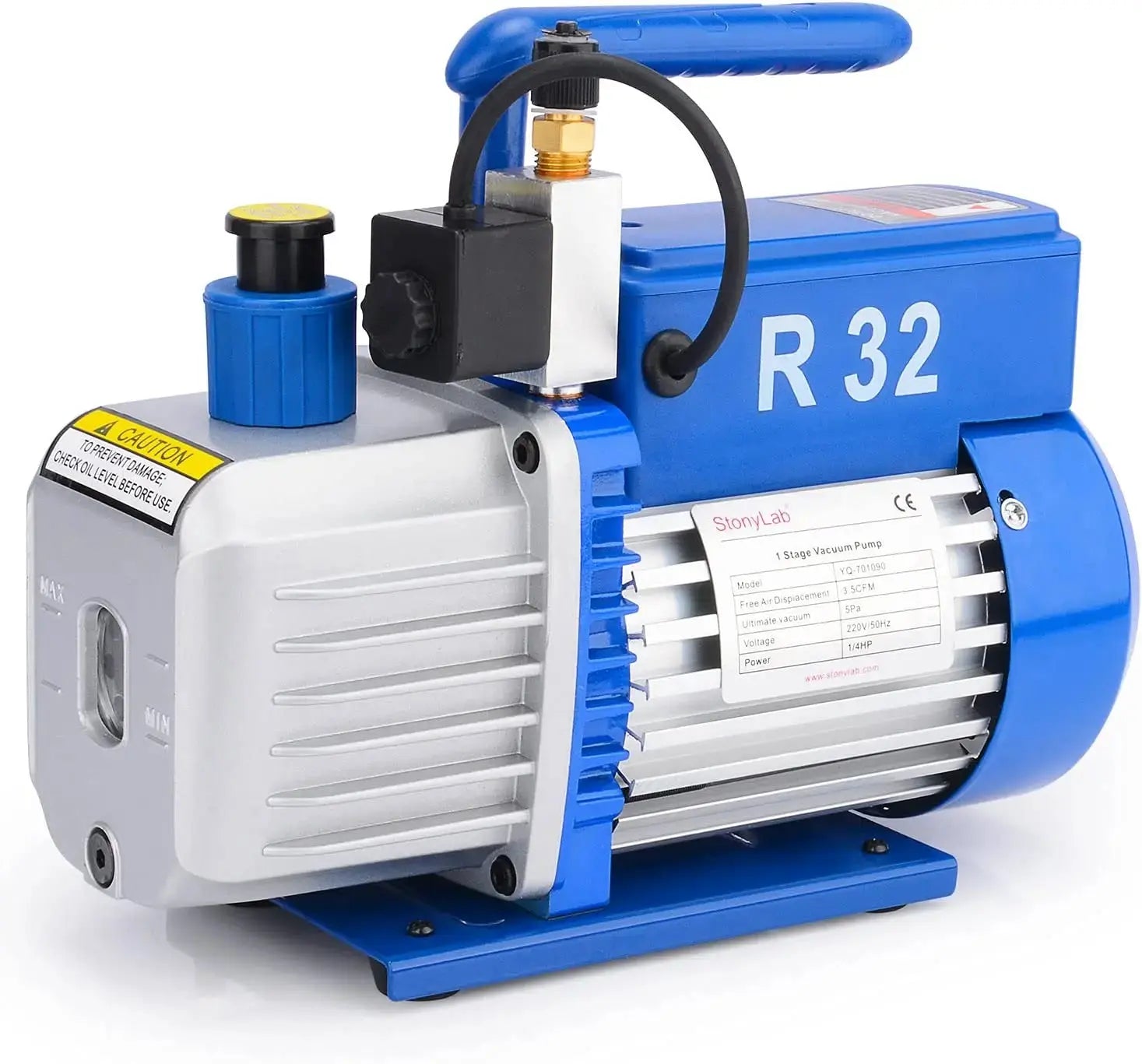

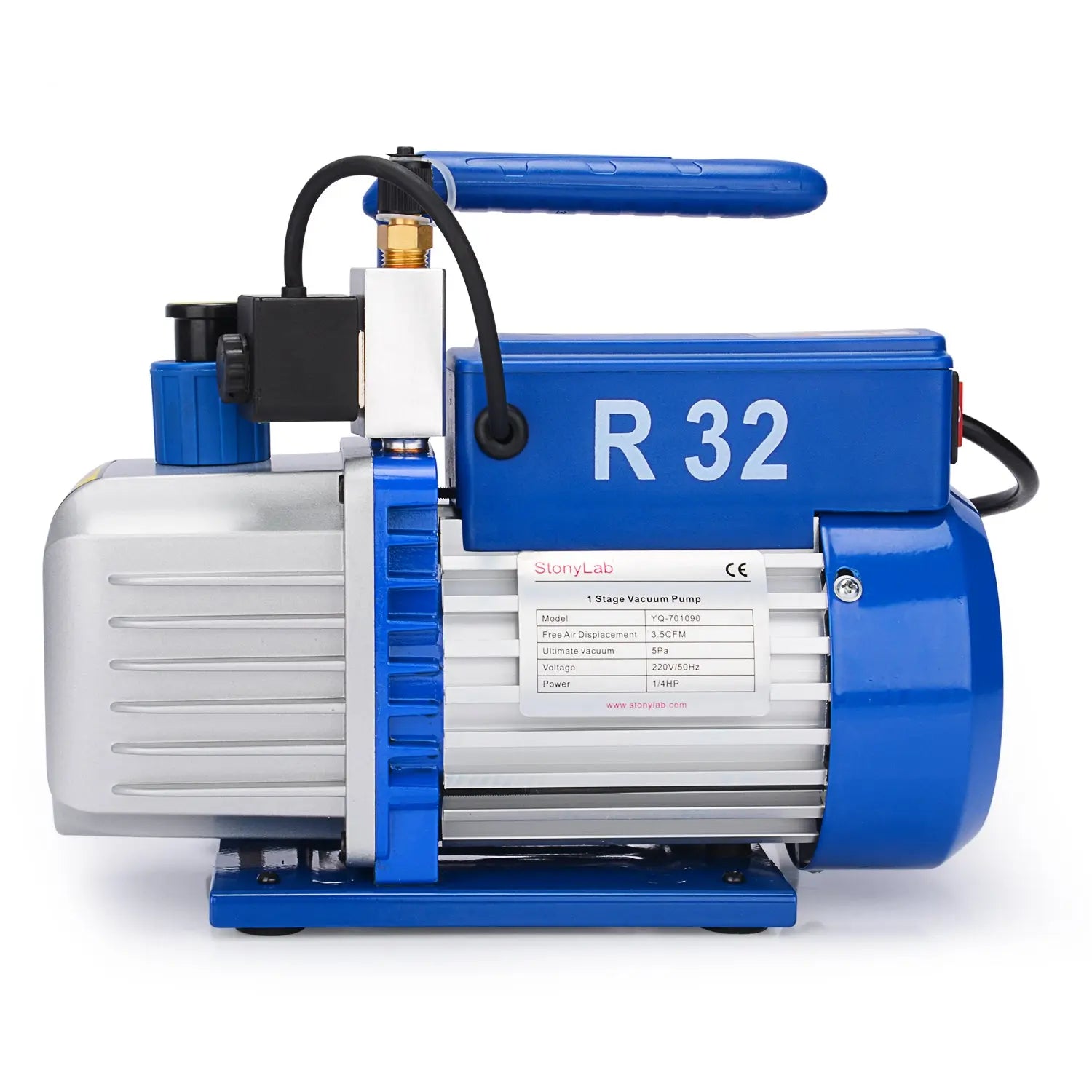

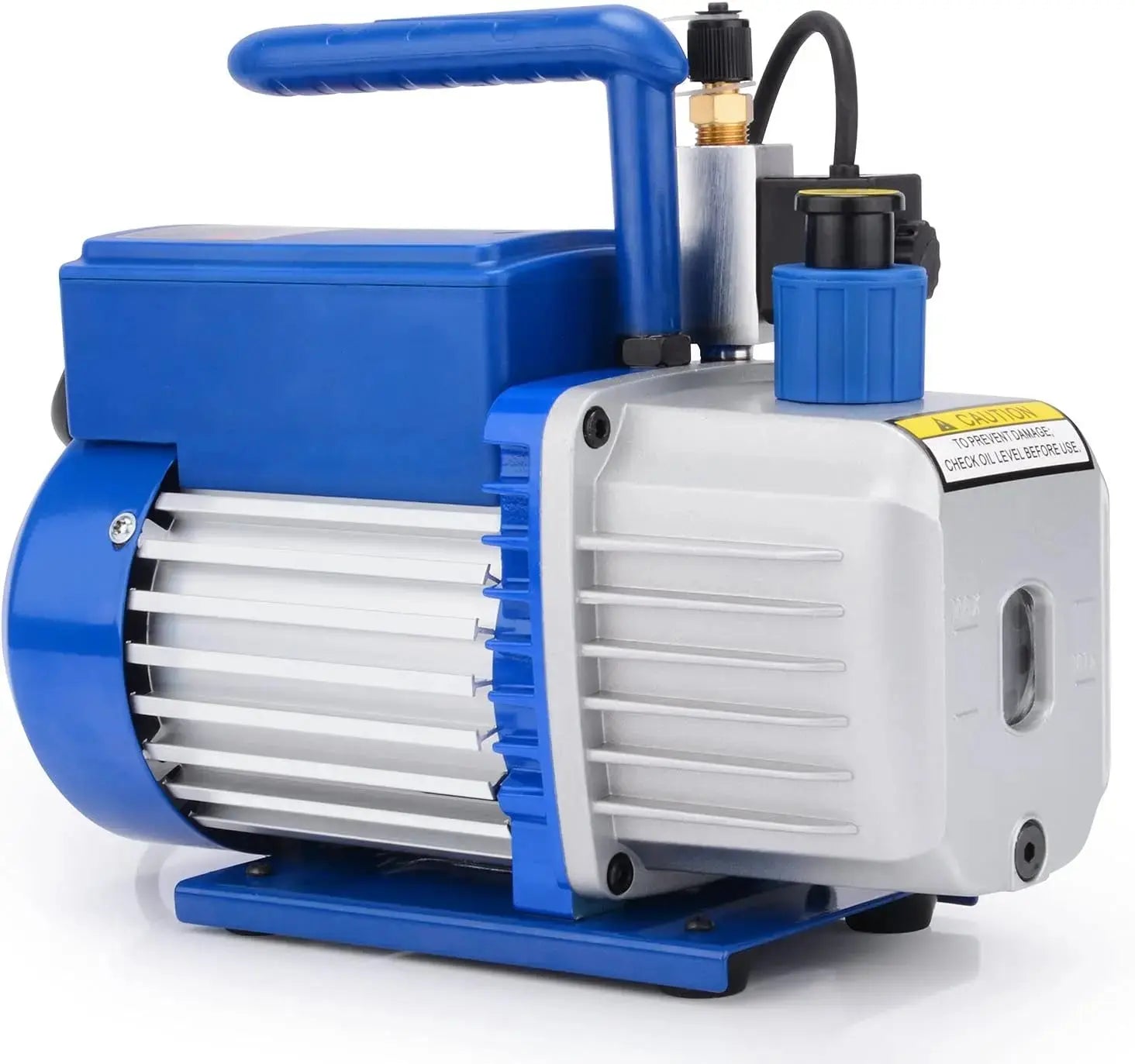

Single-Stage Rotary Vane Vacuum Pump, 25-30 Pa, 100 L/min

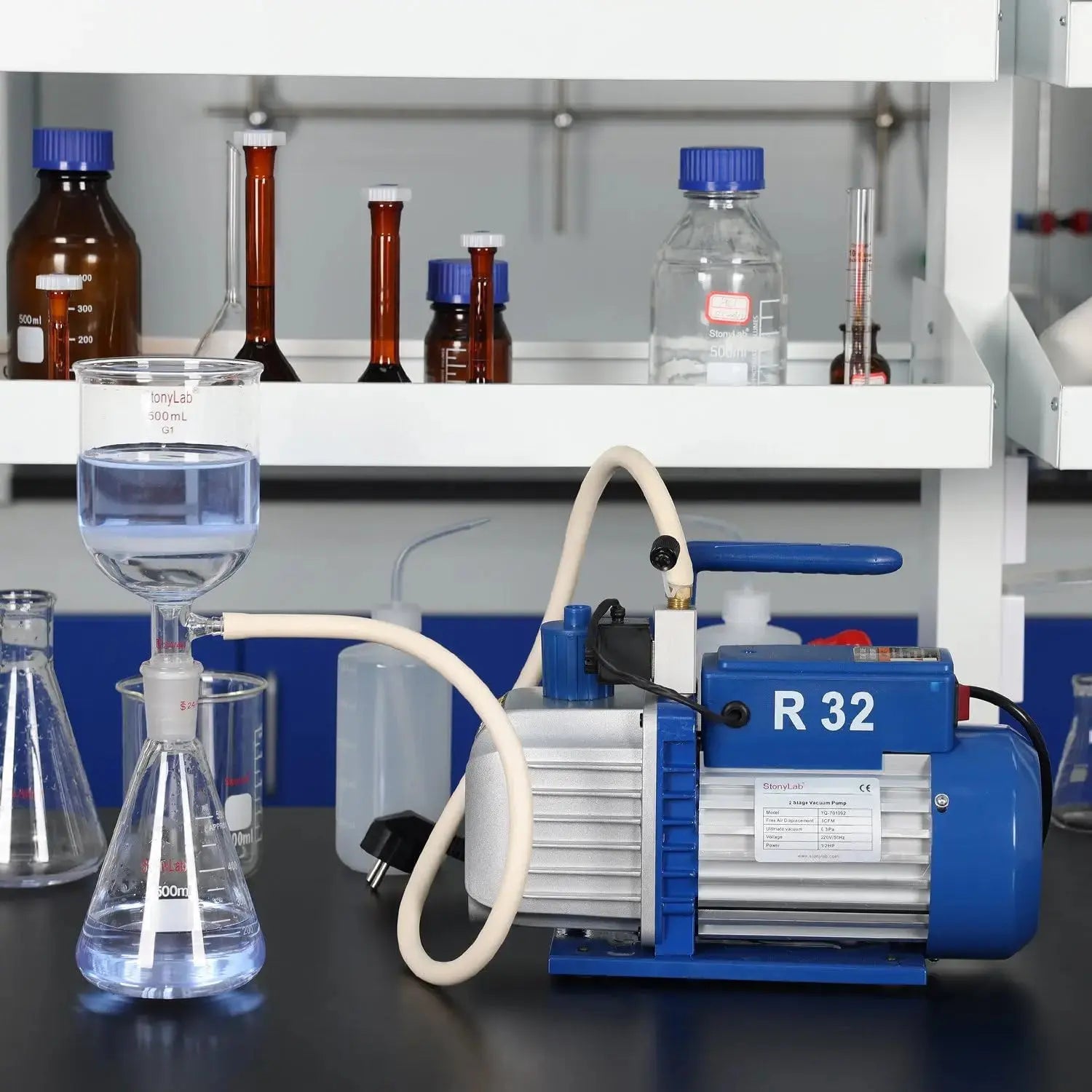

• StonyLab Single Stage Rotary Vane Vacuum Pump provides a reliable vacuum source for vacuum filtration, vacuum desiccation, solid phase extraction, and more; can also be used with rotary evaporator

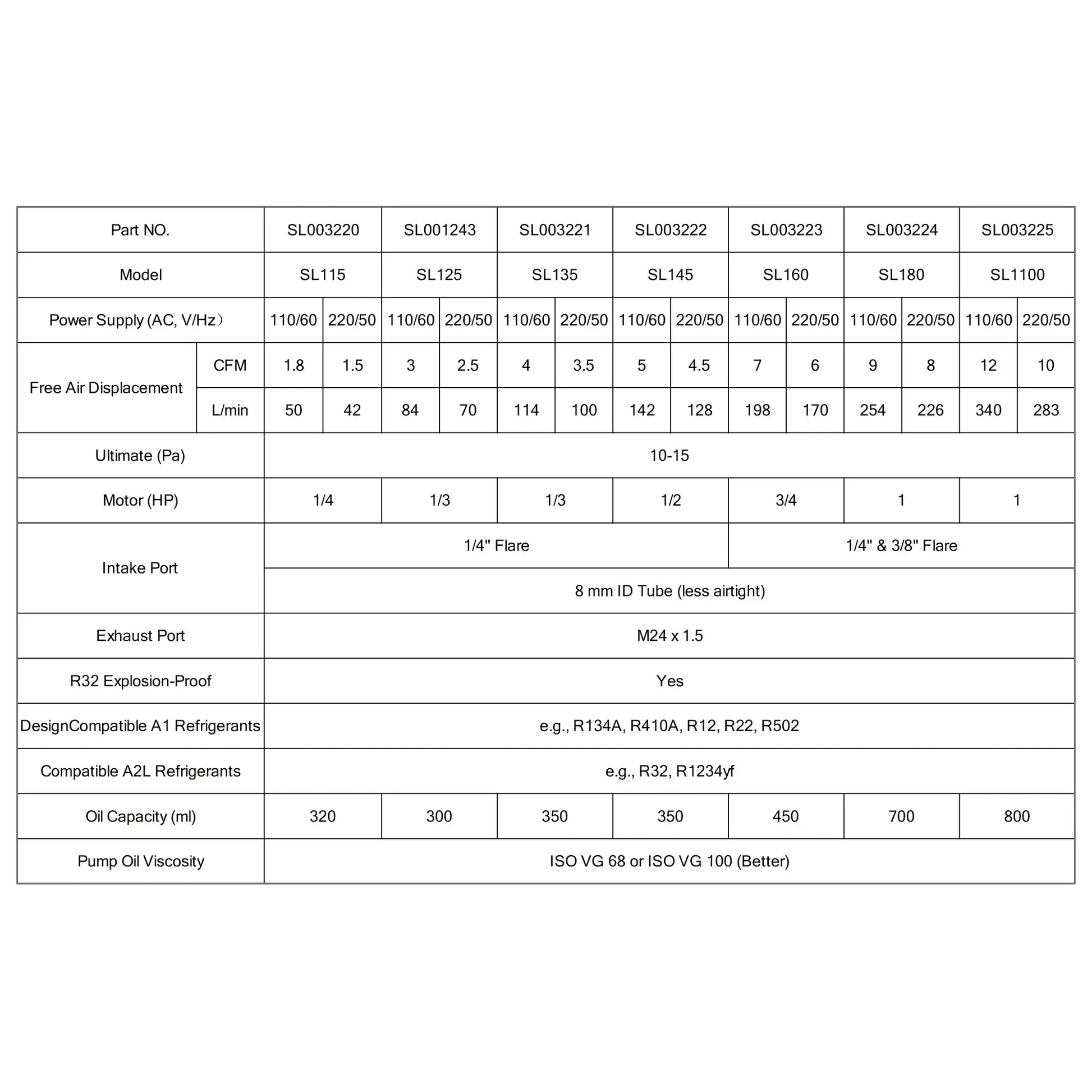

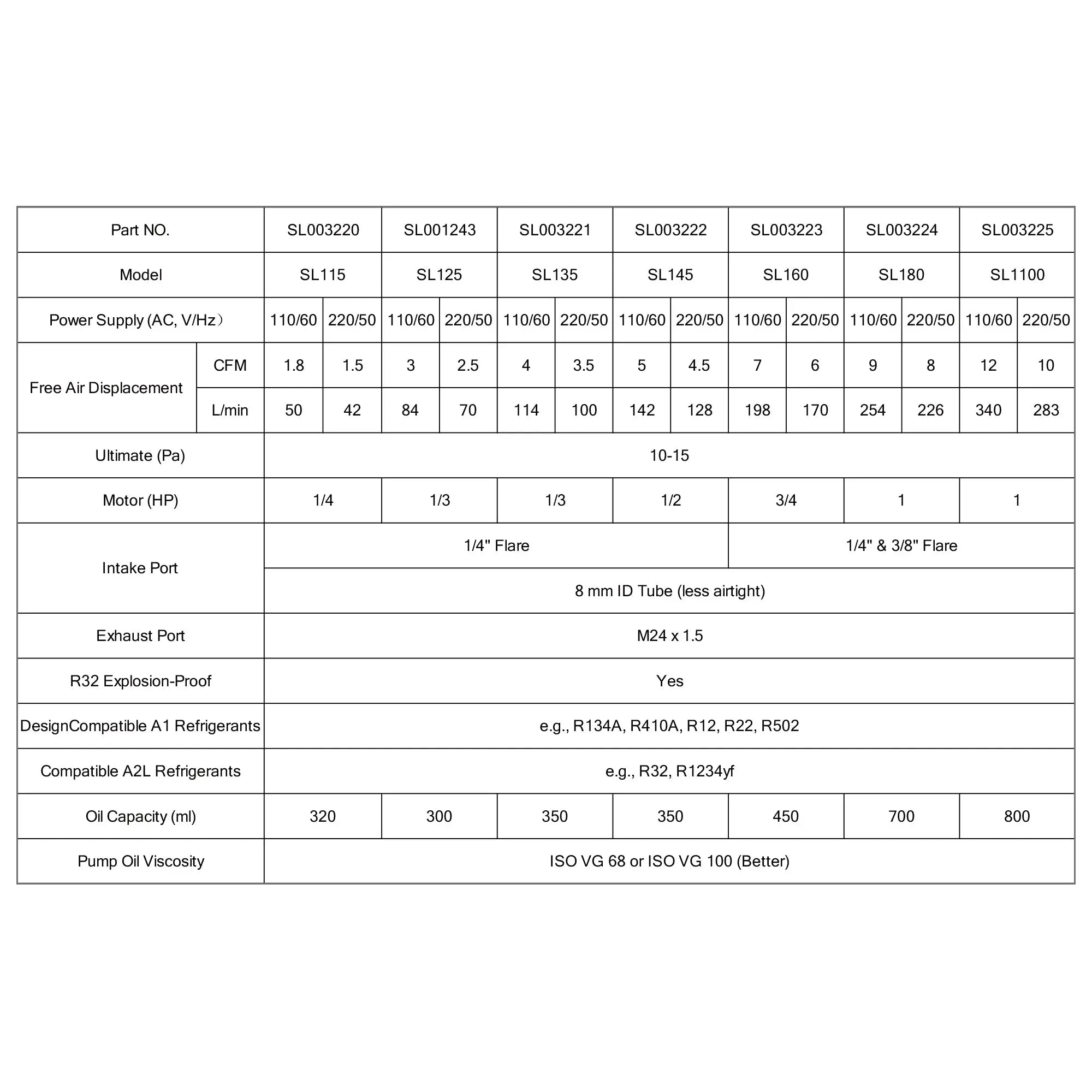

• Flow Rate: 3.5 CFM, Max Power: 1/4 HP, Ultimate Vacuum: 25-30 Pa, Oil Capacity: 280 ml, Inlet Port: 1/4” sea and 1/2” acme

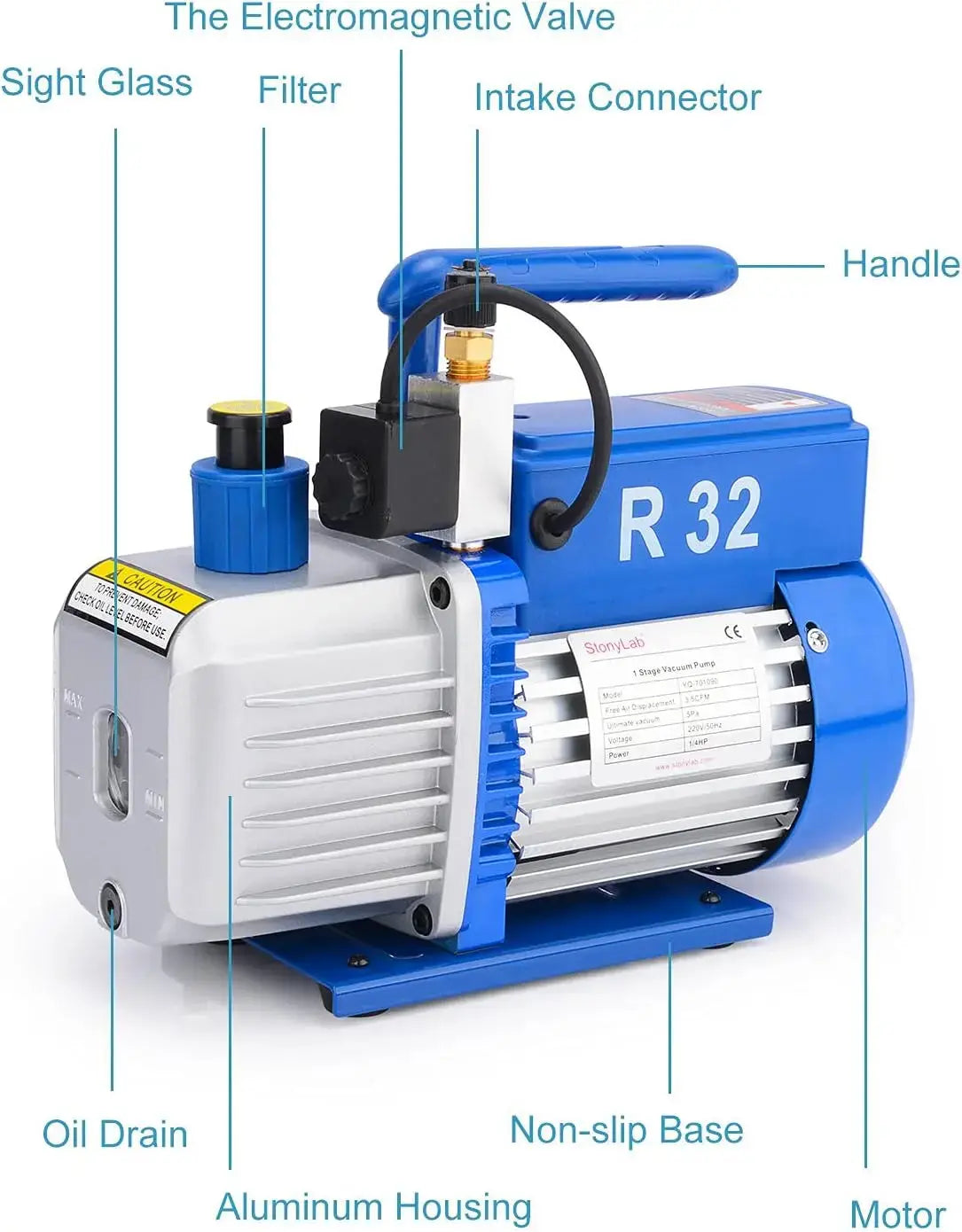

• Quick, easy setup and simple, user-friendly operation; The pump offers low vibration, quiet and stable performance with a solenoid valve preventing oil or gas from backflow
• Widely used to compress and convert gases for lab experiments, research, vacuum packing, refrigeration maintenance, wine degassing, deaeration, thermoplastic molding, and other applications; ideal for repairing air conditioning systems including R134A, R410A, R12, R22, and R502
• ASIN: B0915B4281

Inlet and Exhaust:

• Inlet: 1/4SAE or 7/16-20UNF
  • Recommended hose: 8 mm ID hose with 1/4 SAE or 7/16-20 UNF fitting for optimal sealing
  • An 8 mm ID hose without fitting can be used, but the seal may not be as tight
  • If the gas reacts with pump oil (e.g., water vapor), use a trap before the inlet.
• Exhaust (filter) port size: 24 mm

  • If the gas is harmless to oil but cannot be vented to air, connect an absorber at the exhaust and direct it to a fume hood.  Exhaust port fits 24 mm ID hose
