Rotary Evaporator 1L, 20~300rpm, 22ml/min
SKU:
Couldn't load pickup availability
Processing: 5-9 business days. Shipping: 3-7 business days.

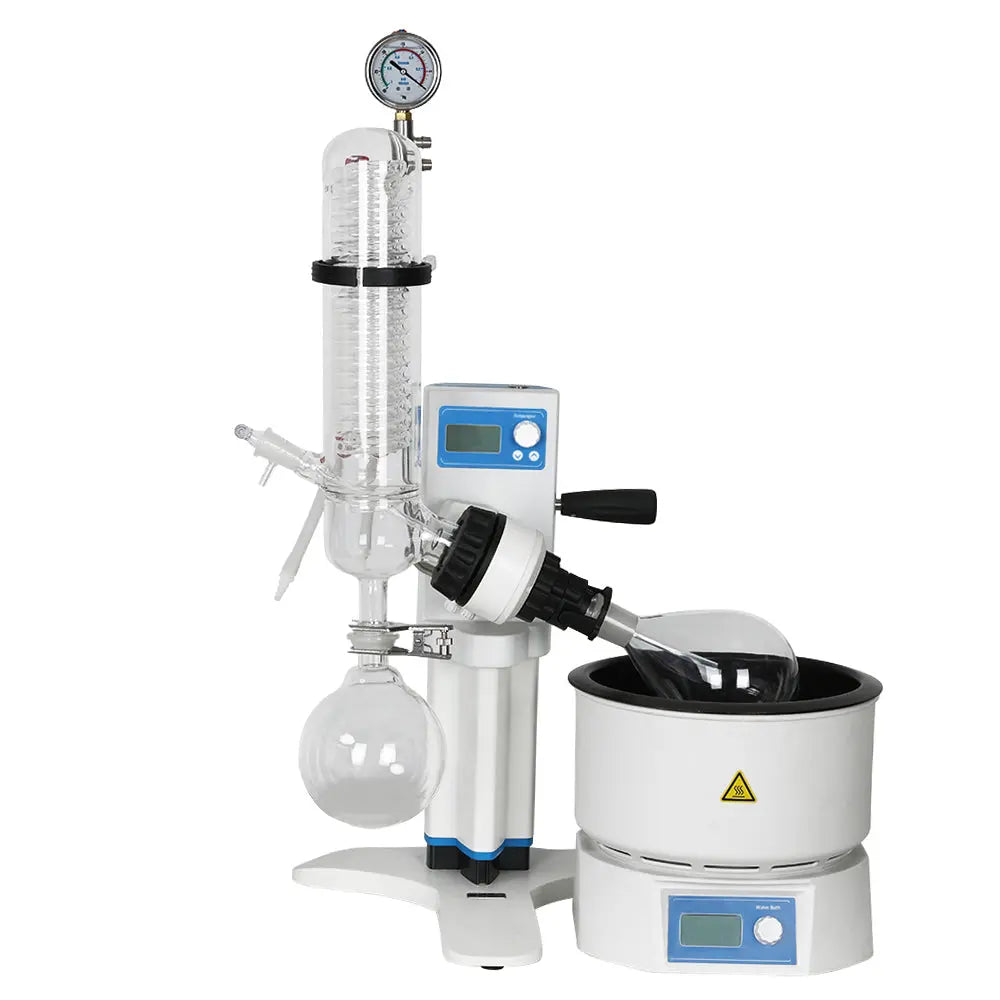

Rotary evaporators are primarily utilized to distill substantial volumes of volatile solvents continuously under reduced pressure.

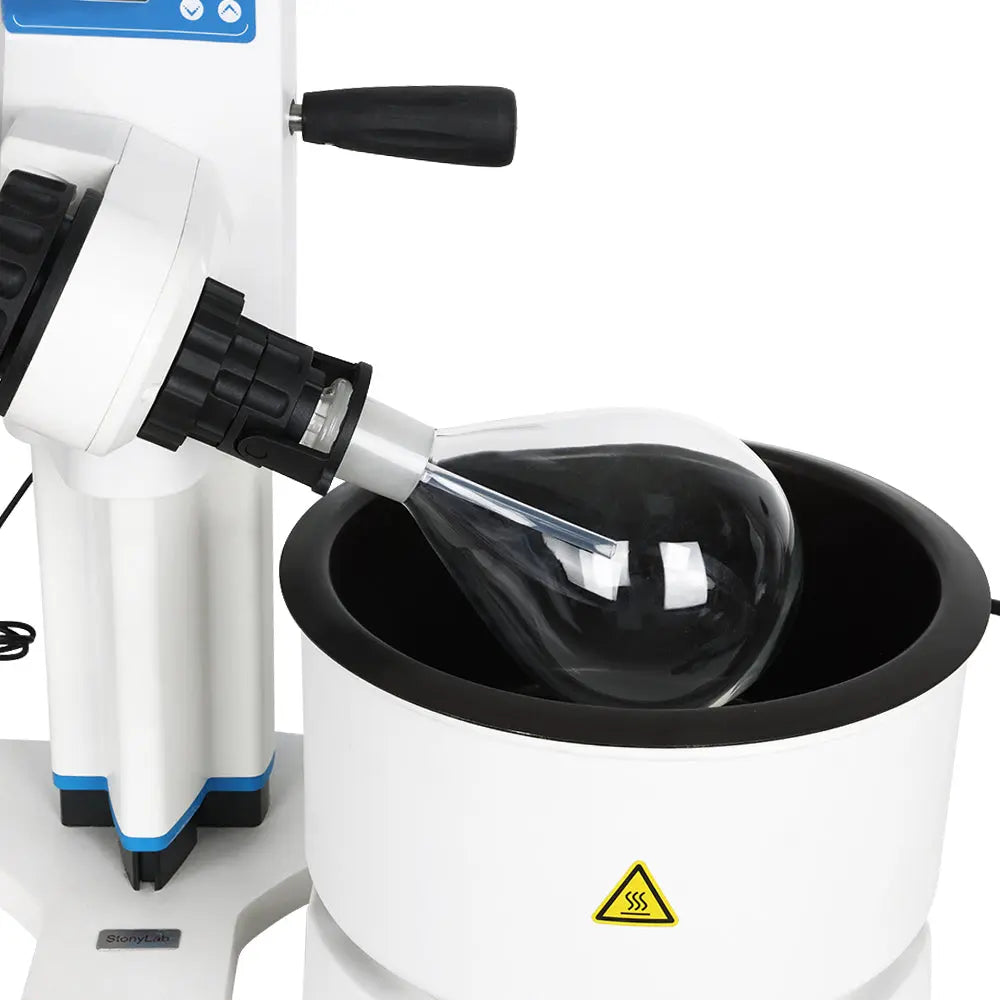

Featuring a push-button lifting / rocker lifting mechanism, these evaporators possess a simple structure that is stable and dependable, enabling laboratory operators to operate them effortlessly with just one hand.
Double heating Teflon composite pot is highly resistant to high temperatures and possesses flame retardant properties.
This equipment offers the flexibility to employ water or oil as a heating medium. When water is used, the temperature control range spans from room temperature to 99℃, whereas with oil, the temperature control range extends from room temperature to 180℃.
Everything shown in picture is sold as a whole set. Should you have any inquiries, please do not hesitate to contact us.

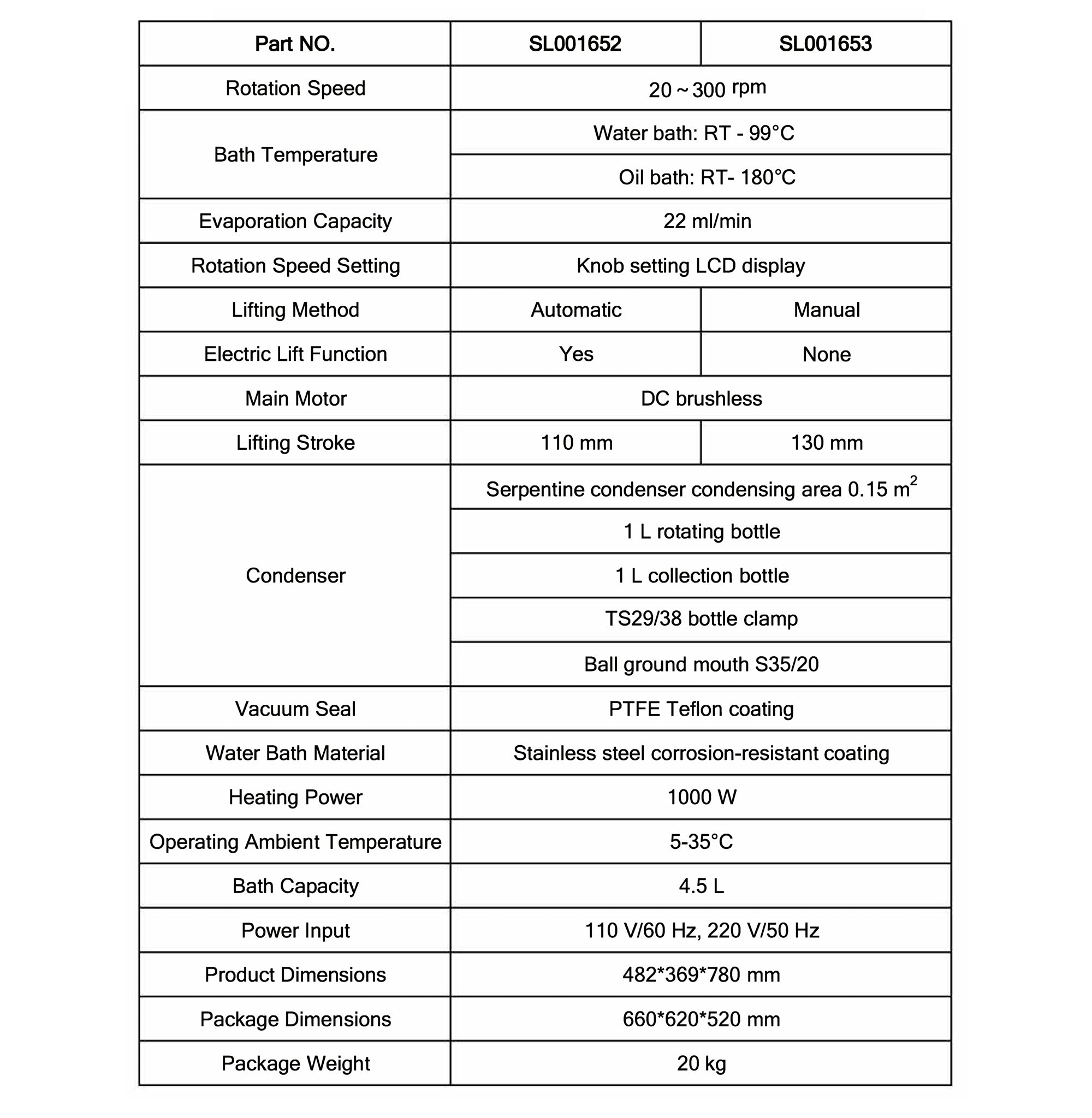

Specification
|
Model |
SB-HX-HR-21A |
|
Rotation Speed |
20~300rpm |
|
Bath Temperature Control Range |
Water bath: RT+5 - 99°C Oil bath: RT+5 - 180°C |
|
Evaporation Capacity |
22ml/min |
|
Rotation Speed Setting |

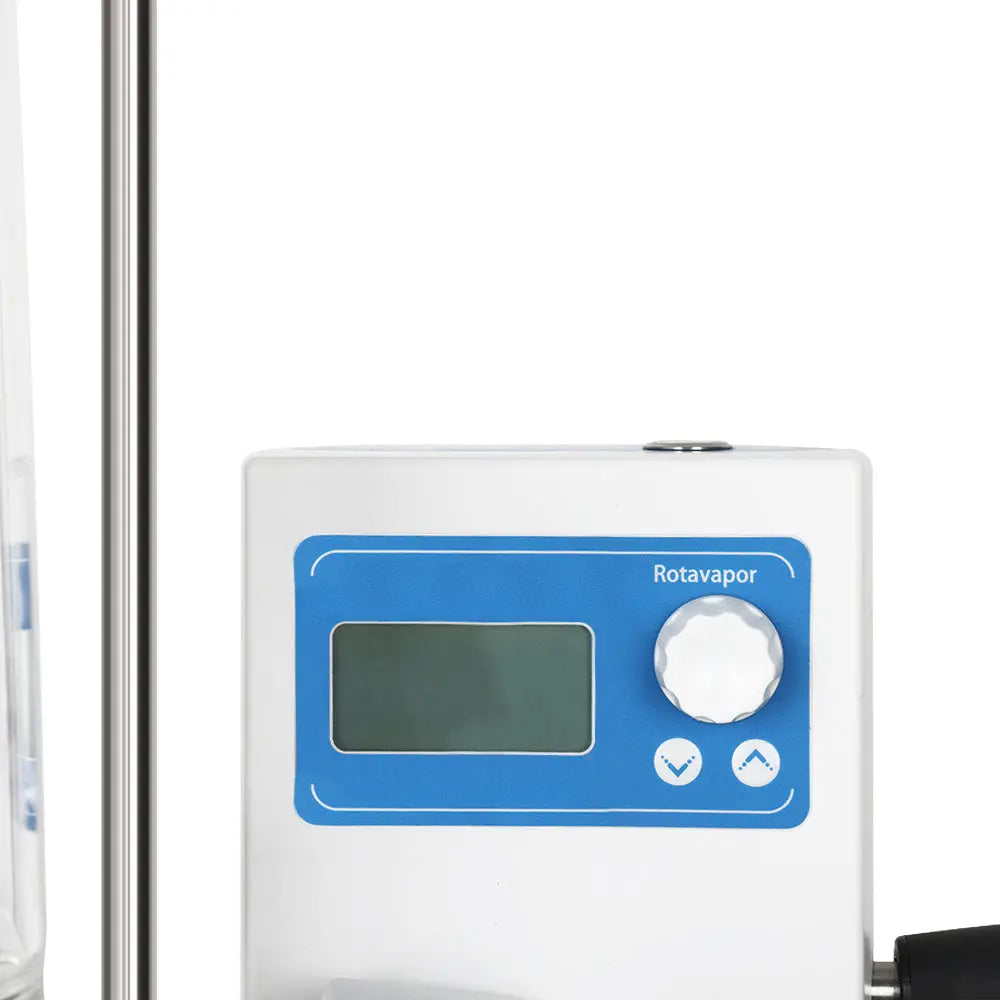

Knob setting + LCD display |
|
Lifting Method |
Automatic |
|
Electric Lift Function |
Yes |
|
Main Motor |
DC brushless |
|
Condenser |

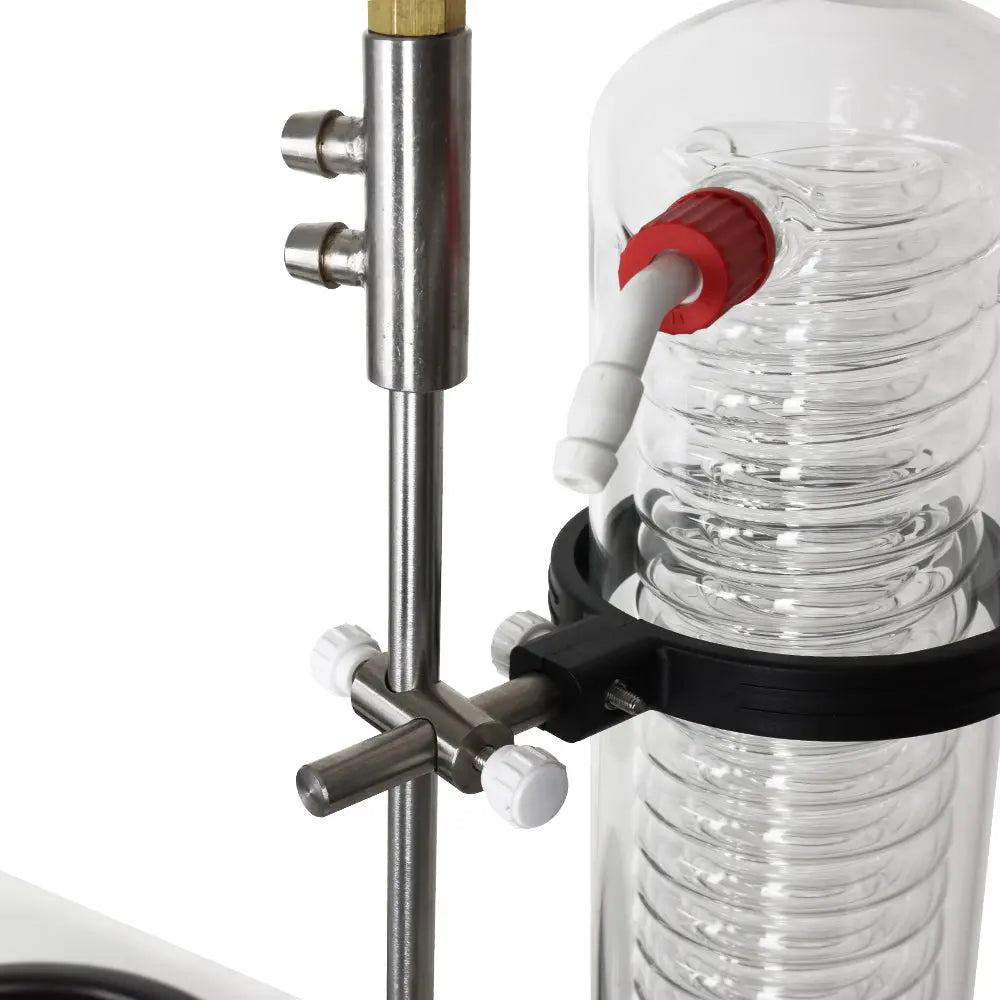

Serpentine condenser condensing area 0.15m2 1 L rotating bottle 1 L collection bottle TS29/38 bottle clamp ball ground mouth S35/20 |
|
Vacuum Seal |
PTFE+ Teflon coating |
|
Water Bath Material |
Stainless steel corrosion-resistant coating |
|
Heating Power |
1000W |
|
Operating Ambient Temperature |
5 - 35°C |
|
Bath Size (inside)φ×H (mm) |
φ230×130 |
|
Model |
SB-HX-HR-21M |
|
Rotation Speed |
20 - 300rpm |
|
Bath Temperature Control Range |
Water bath: RT+5 - 99°C Oil bath: RT+5 - 180°C |
|
Evaporation Capacity |
22ml/min |
|
Rotation Speed Setting |
Knob setting + LCD display |
|
Lifting Method |
Manual |
|
Electric Lift Function |
None |
|
Main Motor |
DC brushless |
|
Condenser |
Serpentine condenser condensing area 0.15m2 1L rotating bottle 1L collection bottle TS29/38 bottle clamp ball ground mouth S35/20 |
|
Vacuum Seal |
PTFE+ Teflon coating |
|
Water Bath Material |
Stainless steel corrosion-resistant coating |
|
Heating Power |
1000W |
|
Operating Ambient Temperature |
5 - 35℃ |
|
Bath Size (inside)φ×H (mm) |
φ230×130 |
